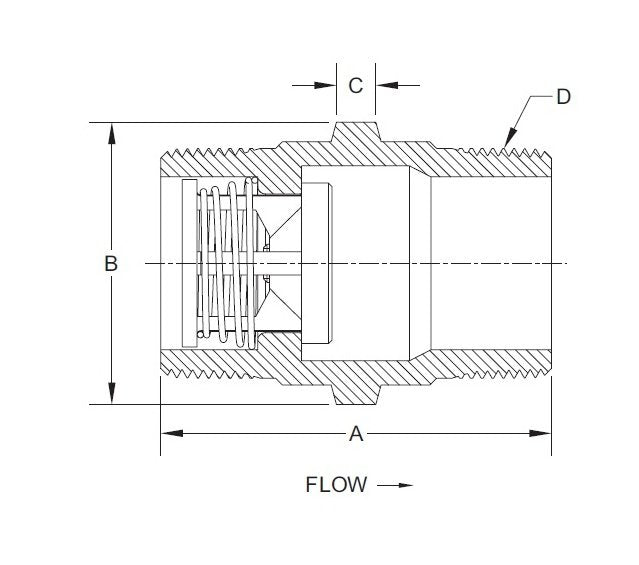

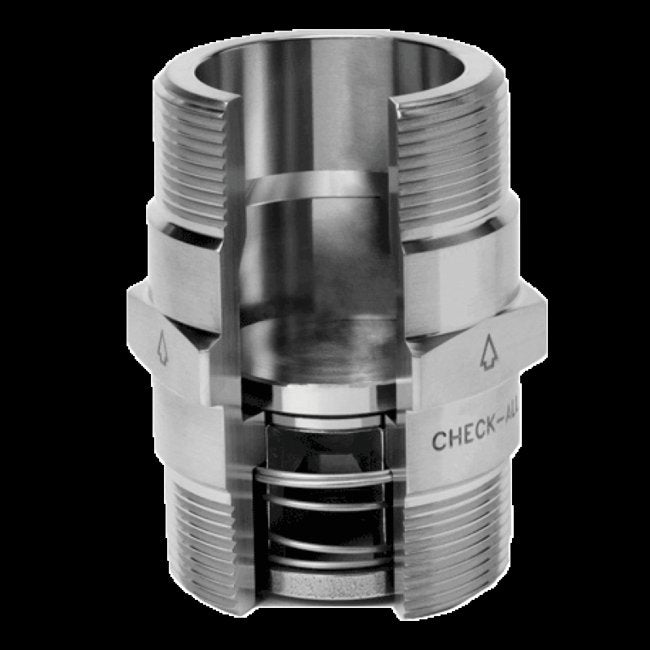

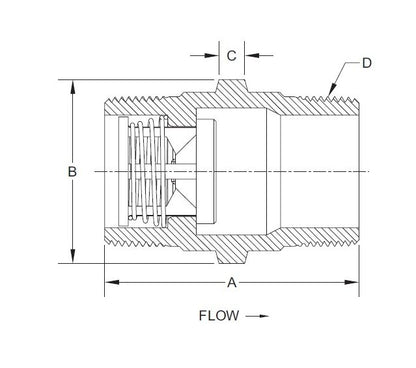

1" CR Style Connector Check Valve with 0.125 psi Cracking Pressure
1" CR Style Connector Check Valve with 0.125 psi Cracking Pressure
SKU:CNA-e8b1cb
Precision 1" CR Connector Check Valve with 0.125 psi Cracking Pressure, ideal for secure fluid control in industrial settings.
Regular price
$89.99
Regular price
Sale price
$89.99
Unit price
per
Initiate Order
1" CR Style Connector Check Valve with 0.125 psi Cracking Pressure
$89.99
Quantity: 1
Claim Your Seller Account
1" CR Style Connector Check Valve with 0.125 psi Cracking Pressure
$89.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The 1" CR Style Connector Check Valve is a precision-engineered solution for installations requiring a reliable check valve with male pipe threads. Its adaptable design allows for low-pressure relief and vacuum breaker functions, enhancing overall system flexibility. With body material options including 316 Stainless Steel and Alloy varieties, and seat materials such as Buna-N and PTFE, this valve ensures durability and compatibility in diverse environments. Non-Shock Pressure Ratings of up to 3000 psig guarantee optimal performance even under demanding conditions. Certified to meet ISO 9001 standards, this valve is a dependable choice for industrial applications.
Product Specifications
Note
Made in USA.
Specifications Body Material
316 Stainless Steel = SS | Alloy 20 = A2 | Alloy B = HB | Alloy C-276 = HC | Brass = BR | Carbon Steel = CS | Monel® 400 or Alloy R405 = MO | Titanium = TI
Specifications Body Material Availability
316 Stainless Steel (SS) - Standard | Alloy 20 (A2) - Semi-Standard | Alloy B (HB) - Contact the factory for these or other materials | Alloy C-276 (HC) - Semi-Standard | Brass (BR) - Standard | Carbon Steel (CS) - Standard | Monel® 400 or Alloy R405 - Semi-Standard | Titanium (TI) - Contact the factory for these or other materials
Specifications Certifications
European Conformity (CE) PED 2014/68/EU Complaint | International Organization for Standardization (ISO 9001) Certified
Specifications Nominal Pipe Size
1 in
Specifications Non Shock Pressure Rating At 100 Degree Fahrenhei
3000 psig
Specifications Note For Material
Listed above are the most common material selections. Please contact the factory for additional options.
Specifications Note For Standard Cracking Pressure
0.125 psi springs are not recommended for installations with flow vertical down.
Specifications Seat Material
"Metal-to-Metal" = MT | Aflas® = AS | Buna-N = BN | Ethylene Propylene Diene Monomer (EPDM) = EP (EP seats not recommended for use with Carbon Steel valves.) | Fluoro-Elastomer (FKM) = VT | Neoprene = NE | Perfluoroelastomer = KZ | Polytetrafluoroethylene (PTFE) = TF
Specifications Size Code
H
Specifications Special Options
T = FEP Encapsulated Spring (Contact the factory for more options)
Specifications Spring Material
17-7PH Stainless Steel = PH | 316 Stainless Steel = SS | Alloy B = HB | Alloy C-276 = HC | Inconel® X750 or Alloy X750 = IX | Monel® 400 = MO | Titanium = TI
Specifications Standard Cracking Pressure
0.125 psi
Specifications Valve Style
International Organization for Standardization (ISO) 7 R Threads = CR
