1 HP Maximum Security Vehicular Slide Gate Operator
1 HP Maximum Security Vehicular Slide Gate Operator
SKU:MAX-1457c0
High-security 1 HP gate operator for industrial locations, airports, and more. Fail-secure operation with anti-tailgating feature and adjustable partial open.
Regular price
$2,999.99
Regular price
Sale price
$2,999.99
Unit price
per
Initiate Order
1 HP Maximum Security Vehicular Slide Gate Operator
$2,999.99
Quantity: 1
Claim Your Seller Account
1 HP Maximum Security Vehicular Slide Gate Operator
$2,999.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

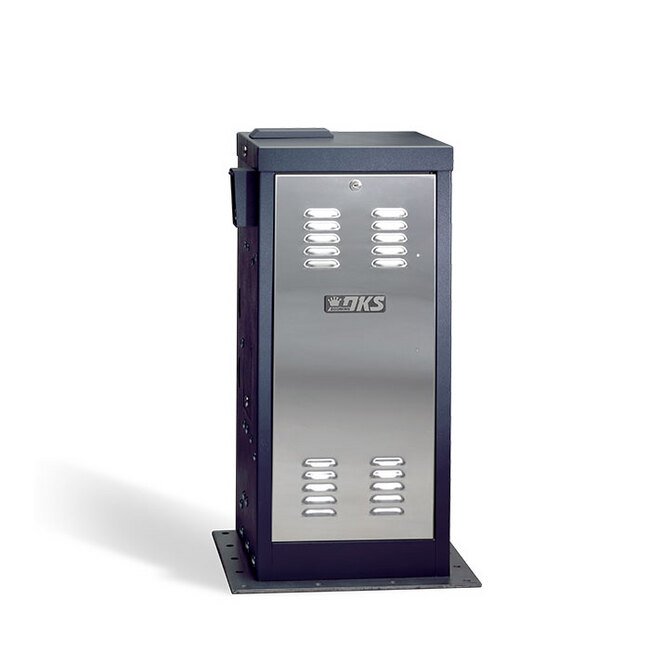

The 1 HP Maximum Security Vehicular Slide Gate Operator by DoorKing® is purpose-built for industrial and high-security applications such as airports, sea ports, and factories. This operator features fail-secure operation, anti-tailgating circuit, adjustable partial open capability, and speed control options. With a continuous-duty 1 HP motor, it can handle gates up to 100 ft long and weighing up to 3000 lb. Additional features include direct driven limit switches, Gate Tracker Reporting output, 2 convenience outlets, and manual release for enhanced security and convenience. Compliant with ETL standards, this gate operator ensures reliable and efficient operation in Class III and Class IV applications.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Additional Information Additional Information
Our experience in the industry has taught us not to overlook this critical component - especially considering our Operators can move gates up to 160 feet long and 25,000 pounds. Not only can we move massive gates, but we can move them quickly in an emergency at a rate of 4 feet per second.A customer-favorite feature is our Gate Reporting, which delivers the who-where-when of entry and exit, and also alerts users to gate obstruction and other issues. While the sheer strength of our Gate Operators is top tier, weâve built them with a host of valuable features to create the most robust Maximum Security line on the market. For reliable perimeter security built by experience, choose DKS.This assures your security gate is open the absolute minimum amount of time necessary.
Advantages Advantages
1 horse power.Up to 100 ft gates weighing as much as 3000 lb.
Applications Applications

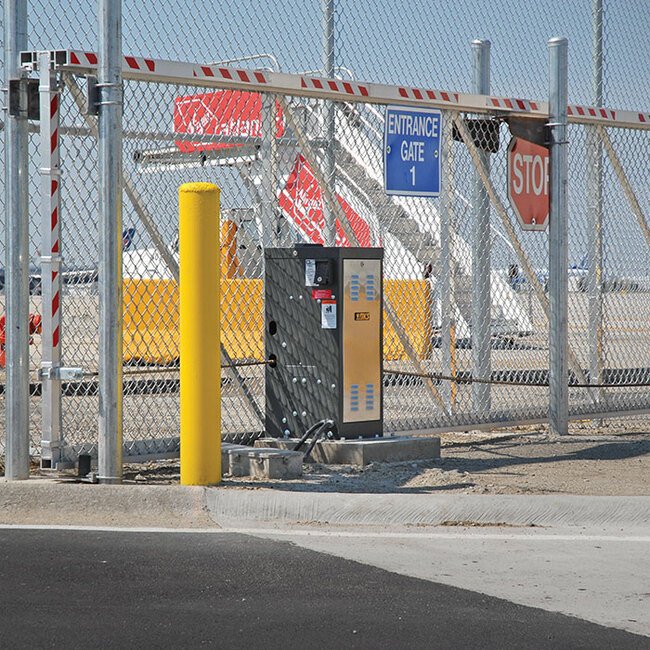

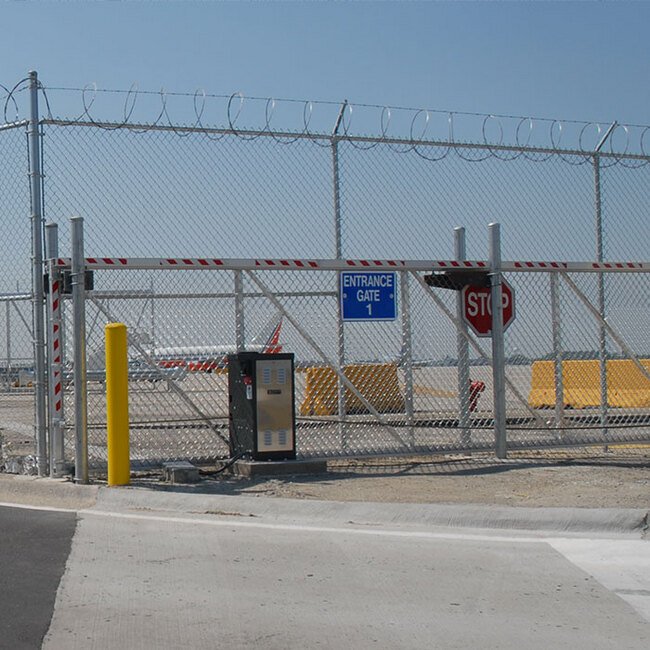

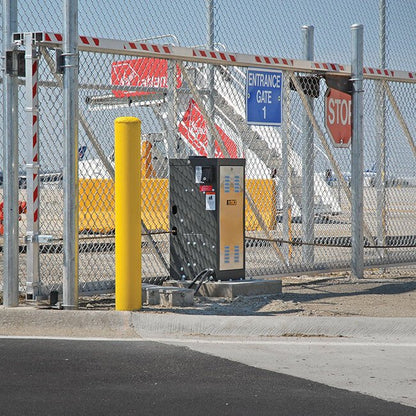

Maximum Security applications only - such as industrial locations:Loading DocksFactoriesAirport Security AreasSea Ports, Etc.
Duty Cycle Type Duty Cycle Type
Continuous
Key Features Key Features

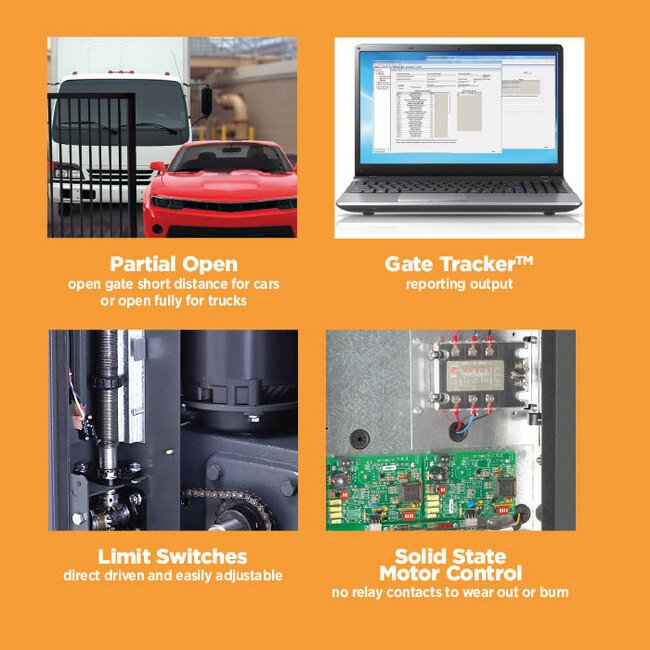

Direct driven limit nuts.Anti-tailgating feature.Adjustable mid-stop.Gate tracker reporting output.Ports for plug-in loop detectors.Two convenience outlets.Fail-secure operation includes crank for manual operation.Programming switches.Built-in reset switch.Built-in power On/Off switch.
Options Options
Heavy-Duty Mounting Pedestal is recommended for gates weighing over 1500 lb and is required if Chain Tray is usedChain Tray Kit (p/n 2601-270) is available in 10 ft lengths and is recommended on gates exceeding 20 ft in lengthRed / Green Traffic Signal provides a visual indication when it is OK for traffic to proceed Plug-in loop detectors.Heater kit for cold environments.Surge suppressors.
Specifications Alternating Current Ac Voltage
115 V | 208 V | 230 V | 460 V
Specifications Anti Tailgate Feature
Yes
Specifications Class Of Operation
Class III | Class IV
Specifications Convenience Outlets
Yes
Specifications Direct Current Dc Convenience Open Option Availab
No
Specifications Gate Tracker Data Output
Yes
Specifications Limited Factory Warranty
5 y
Specifications Limit Switches
Direct Driven Limit Switches for precise gate control
Specifications Manual Release
Fail-Secure/Crank
Specifications Maximum Gate Length
100 ft
Specifications Maximum Gate Weight
3000 lb
Specifications Maximum Speed
1 ft/s
Specifications Motor Power
1 hp
Specifications Mounting Type

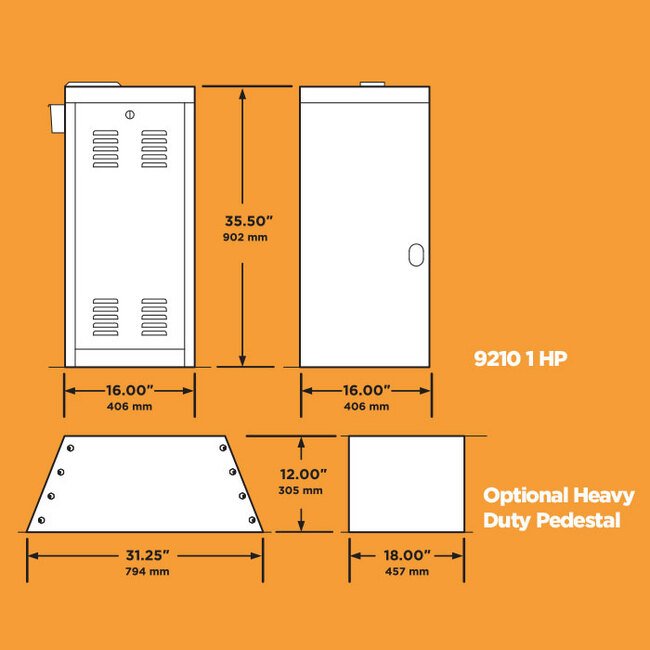

Pad or PedestalRequires 9200-135 pedestal.
Specifications Number Of Convenience Outlets
2
Specifications Operating Temperature
-12 to 62 ºC | 10 to 140 ºF
Specifications Partial Open Limit
Yes
Specifications Ports For Plug In Loop Detectors
Yes
Specifications Standards
Edison Testing Laboratories (ETL) Listed
Specifications Usage
Industrial | Maximum Security
Technical Specifications Technical Specifications
Primary reduction is provided by a 40:1 gear running in a continuous oil bathOperator is shipped with Chain Brackets, Hardware and 20 ft of #50; or #60; ChainFixed Speed is approximately 10-12 inches/sec.Housing is G90 Galvanized Steel painted charcoal grey with stainless steel Access DoorGATE TRACKERTM Reporting output provides operator data to a DKS 1833, 1835, 1837 or 1838 access control systemMaximum gate length 100-feet.Maximum gate weight 2000 Lb. (#50; chain) / 3000 Lb. (#60; chain). Assumes gate is on level ground, in good condition with properly adjusted hardware. Other external factors may affect the performance of the gate operator.Set speed 1 Ft./sec.40:1 gear reduction running in a continuous oil bath.1 HP continuous-duty motor.115, 208, 230 VAC single-phase, 208, 230, 460 VAC three-phase.Operator is shipped with chain brackets and 20-feet of #60; chain.Class III and IV applications only.ETL Listed. (Note: To be compliant with UL 325 and industry safety guidelines, additional Type B1 and/or Type B2 entrapment protection devices are required to be installed with this gate operator. Your professional DKS system installer can provide you with more details on these devices and on current industry safety standards.)Dimensions: 20 "W x 35.5 "H x 18 "D
