1 HP Motor Barrier Gate Operator

1 HP Motor Barrier Gate Operator

TRA-1bc024

Heavy-duty 1 HP Motor Barrier Gate Operator for industrial use, with advanced features & UL compliance.

$1,299.99
$1,299.99
Sale

Initiate Order

1 HP Motor Barrier Gate Operator

1 HP Motor Barrier Gate Operator

$1,299.99

Quantity: 1

Claim Your Seller Account

1 HP Motor Barrier Gate Operator

1 HP Motor Barrier Gate Operator

$1,299.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details
The 1 HP Motor Barrier Gate Operator is a heavy-duty solution designed for limited-use applications in industrial settings. Featuring a Harmonic Arm Linkage for smooth and accurate arm travel, it can control wide traffic lanes up to 27 feet wide. With versatile mounting options, an aluminum arm assembly, and magnetic limit switches, this operator ensures secure and reliable access control. Compliant with Underwriters' Laboratories (UL) 325 and 991 standards, it offers a range of advanced features including a Pedestrian Protection System, plug-in loop detectors, Gate Tracker reporting, and more.

Product Specifications

Additional Information Additional Information
For more secure locations our customers choose the 1620 Surface Mount Lane Barrier or Spring Loaded Auto Spikes for greater control without trenching. Lane breach deterrence is best achieved with mechanically-linked Surface Mount Auto Spikes, or the Steel Rotating Lane Barrier provide a more formidable perimeter, complete with required warning signs and signal lights. The optional Backup Battery means no property will be out of commission in the event of a power outage.A host of experience-born features ensure DKS products serve all types of locations, from industrial and commercial properties, gated communities, residence halls and apartment complexes, retail parking, rental car garages, self storage facilities, schools, government agencies and more. The DKS Pedestrian Protection System reduces liability by watching out for people in the path of the arm while the Reversible Edge Vehicle Awareness Sensor prevents damage when vehicles haven’t cleared the flow point. Mountable on the left or right, DKS Traffic control products also offer Back Up Detection, Perimeter Access Management to sequence with Swing and Slide Gate Operators, and of course, Gate Tracker Reporting to know about the who, where, when of traffic traveling in and out of the property. With all the features to keep you moving forward, it's DKS.
Advantages Advantages

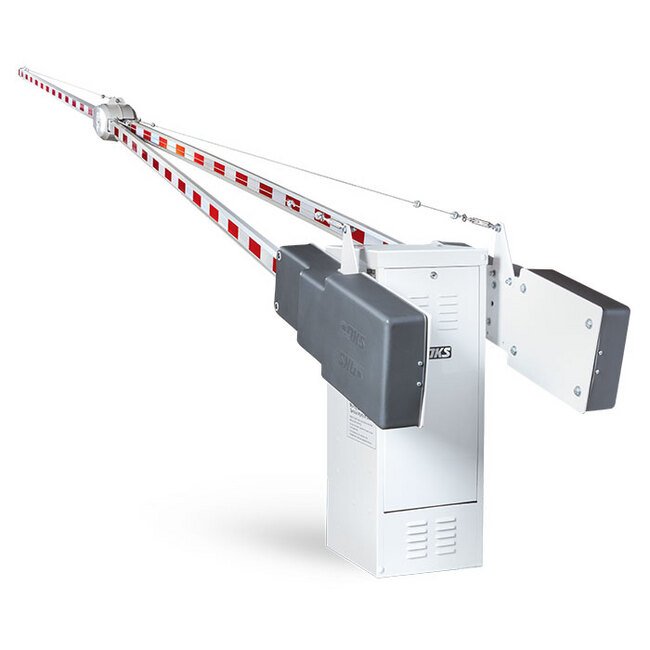

Wide traffic lanes up to 27-feet wideLow use commercial and industrial applicationsUses a counter-balanced three-piece wishbone style arm assembly, and is used with the extended arm barriers.1 HP continuous-duty motor60:1 gearbox running in a continuous oil bathArm rotates 90 in approximately 5.5 seconds
Applications Applications
Apartment Complex / Gated CommunitiesCommercial / Industrial BuildingsParkingMixed Use BuildingsSelf Storage
Key Features Key Features

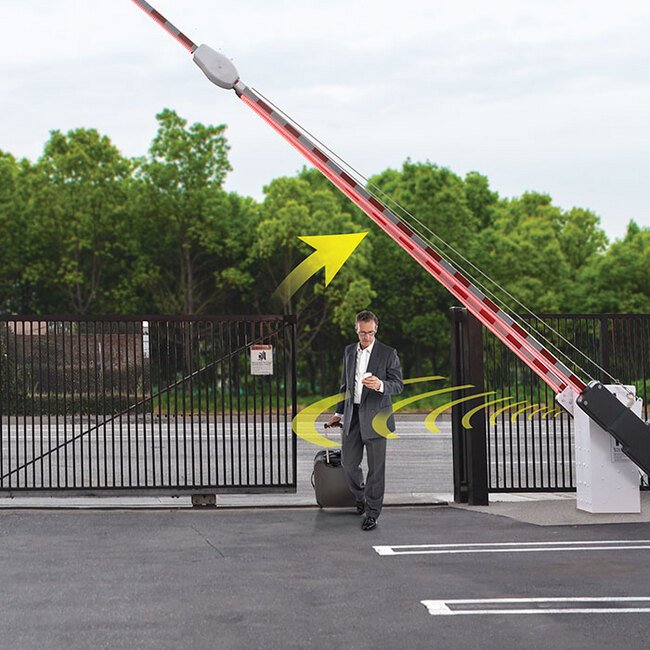

Designed to control wide traffic lanes (27 feet maximum) in limited use applicationsSuitable for low-cycle applications to restricted access areas such as prisons, airport security areas or industrial sitesElectronic limit settingsThree-piece aluminum arms available in 20, 24 and 27 foot lengthsDKS Pedestrian Protection SystemMagnetic limit controlPorts for plug-in loop detectorsAutomatic sequencing inputs for use with slide and swing gate operatorsUp input memory bufferDown memory optionMultiple up commandsTwo convenience outletsGate tracker reporting outputProgramming switchesBuilt-in power On/Off switchLeft or right hand mount
Options Options

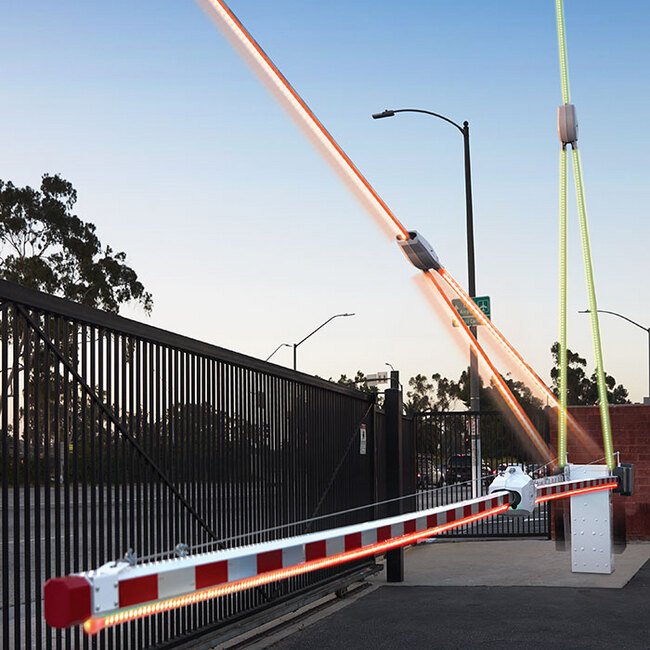

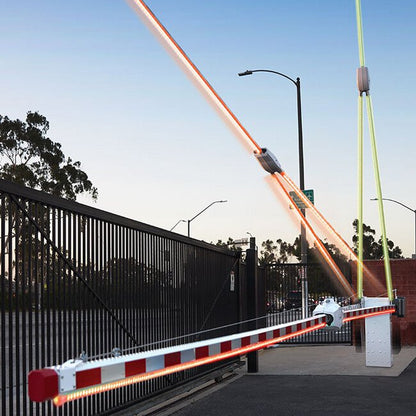

Aluminum arms: 20 Feet, 24 Feet, 27 Feet20-Foot Wood Arm (requires 1602-041 kit)DKS Pedestrian Protection SystemPlug-in loop detectorsDC powered convenience openHeater kitFan kitSurge suppressorsManual Crank kit (factory installed option only)Convenience Open PackageHeater and Fan KitsLighted Arm
Specifications Alternating Current Ac Voltage
115 V | 230 V | 460 V
Specifications Aluminum Arms Length
27 ft
Specifications Angular Speed
2.5 s | 90 s
Specifications Auto Sequence
Yes
Specifications Barrier Arm Type
Aluminum (20 Feet (ft)) | Aluminum (24 Feet (ft)) | Aluminum (27 Feet (ft)) | Wood (20 Feet (ft))
Specifications Class Of Operation
Class III | Class IV
Specifications Convenience Outlets
Yes
Specifications Direct Current Dc Convenience Open Option Availab
yes
Specifications Gate Tracker Data Output
Yes
Specifications Gear Box Rotation
360 º
Specifications Limited Factory Warranty
5 y
Specifications Limit Switches
Magnetic
Specifications Manual Release
Fail Secure
Specifications Maximum Arm Length
27 ft
Specifications Motor Power
1 hp
Specifications Mounting Type
Left or Right Hand
Specifications Number Of Phase
1 | 3
Specifications Operating Temperature
-12 to 62 ºC | 10 to 140 ºF
Specifications Ports For Plug In Loop Detectors
Yes
Specifications Standards
Compliant with Underwriters' Laboratories (UL) 325 and 991 | Edison Testing Laboratories (ETL) Listed
Specifications Usage
Limited Usage in Industrial
Specifications Wood Arms Length
20 ft
Technical Specifications Technical Specifications

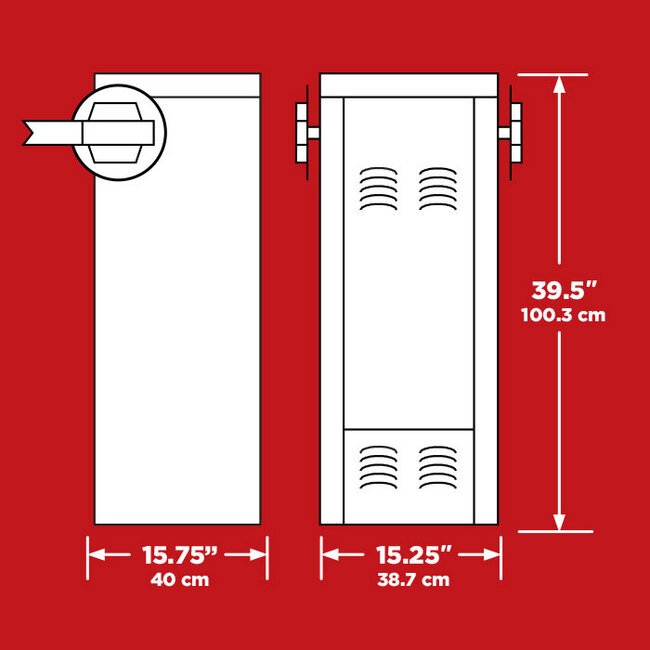

1 HP continuous-duty motor.60:1 gearbox running in a continuous oil bath.115 VAC, 60 Hz, 5.4A, 230 VAC, 60 Hz, 2.7A, 460 VAC, 60 Hz, 1.4A (230 and 460 volt units use a step-down power transformer to achieve 115 volt operating voltage.)Arm rotates 90 in approximately 5.5 seconds.Class III and IV applications.Compliant with UL 325 and 991. ETL Listed. (Note: To be compliant with UL 325 and industry safety guidelines, entrapment protection devices need to be installed with this gate operator. Your professional DKS system installer can provide you with more details on these devices and on current industry safety standards.)Dimensions (operator only): 15.25 "W x 39.75 "H x 15.75 "D.Magnetic electronic limit controlsAuto-close timer 1-23 secondsP.A.M.S. (Perimeter Access Management System) sequence with a slide or swing gate operatorUp input memory bufferDown memory optionMultiple up commandsPort for plug-in open (up) detectorPort for plug-in reverse (down) detectorPorts for plug-in loop detectorsProgramming switchesBuilt-in power On/Off switch
