1" HT Style PTFE Lined Check Valve - Flanged & Drilled Ends
1" HT Style PTFE Lined Check Valve - Flanged & Drilled Ends
SKU:HTS-2c8910
Reliable 1" PTFE Lined Check Valve for critical applications. Complies with ANSI/ASME B16.5 Class 150 flanged ends standard.
Regular price
$249.99
Regular price
Sale price
$249.99
Unit price
per
Initiate Order
1" HT Style PTFE Lined Check Valve - Flanged & Drilled Ends
$249.99
Quantity: 1
Claim Your Seller Account
1" HT Style PTFE Lined Check Valve - Flanged & Drilled Ends
$249.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

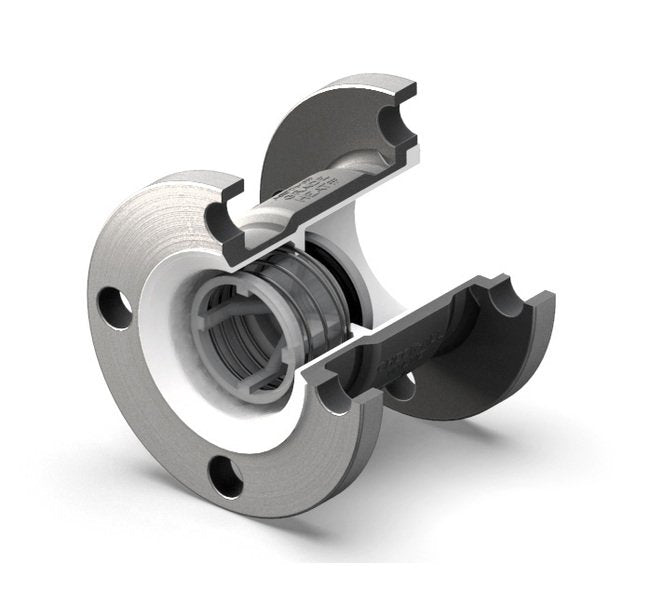

The 1-inch HT Style PTFE Lined Check Valve offers exceptional reliability with a one-piece PTFE liner and FEP encapsulated stainless steel spring. Designed for institutional use, this valve complies with ANSI/ASME B16.5 Class 150 flanged ends standard. With a solid construction and superior materials like virgin PTFE, this valve ensures optimal performance and longevity in various applications. Made in the USA, this valve is a dependable choice for critical systems.
Product Specifications
Additional Information

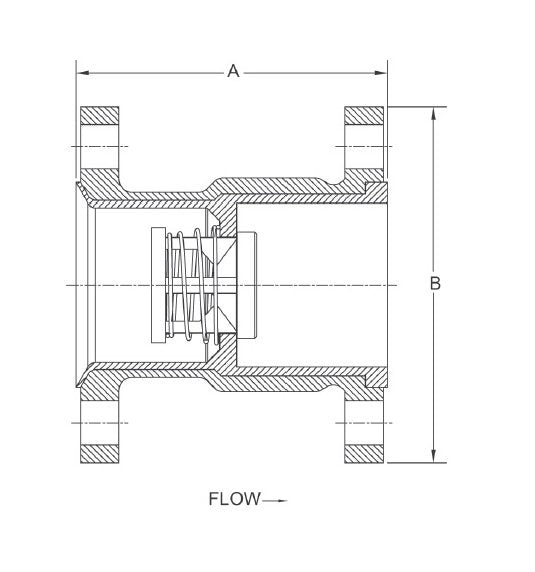

Style HT bodies are made of cast carbon steel only. The liner is made of virgin Polytetrafluoroethylene (PTFE). It is installed as one solid piece of Polytetrafluoroethylene (PTFE) and the internal geometrical shape is machined. The Polytetrafluoroethylene (PTFE) liner has a minimum wall thickness of 3/32 inch, which guarantees against pin holes which can be present in fused liners.The HT valve can also be used as a low pressure relief valve or vacuum breaker by using the desired spring settings.The Check-All® Flanged and Drilled - Fluoropolymer Polytetrafluoroethylene (PTFE) Lined (HT) check valve is a one-piece body valve with ANSI/ASME B16.5 Class 150 flanged ends. The valve has a solid one-piece Polytetrafluoroethylene (PTFE) liner, which covers the flange faces out to the raised face diameter. All wetted surfaces are fluoropolymer (Polytetrafluoroethylene (PTFE)/FEP/PFA) including the FEP encapsulated stainless steel spring.
Note
Made in USA.
Specifications Cast Body Material
Wrought Carbon Steel (WCB/WCC) = CS
Specifications Certifications
European Conformity (CE) Non-PED Statement
Specifications Liner Material
Polytetrafluoroethylene (PTFE)
Specifications Nominal Pipe Size
1 in
Specifications Non Shock Pressure Rating At 100 Degree Fahrenhei
55 psig
Specifications Note For Material
Listed above are the most common material selections. Please contact the factory for additional options.
Specifications Seat Material
Aflas® = AS | Buna-N = BN | Ethylene Propylene Diene Monomer (EPDM) = EP (EP seats not recommended for use with Carbon Steel valves.) | Fluoro-Elastomer (FKM) = VT | Neoprene = NE | Perfluoroelastomer = KZ | Plastic to Plastic = MT (No O-Ring)
Specifications Size Code
H
Specifications Special Options
T = FEP Encapsulated Spring (Contact the factory for more options)
Specifications Spring Material
316 Stainless Steel = SS | Alloy 400 or Monel® = MO | Alloy C-276 = HC | Inconel® X750 or Alloy X750 = IX | Titanium = TI
Specifications Standard Cracking Pressure
3.50 psi
Specifications Valve Style
HT
