1 Inch 316-NM Stainless Steel Chain Shackle with Oversized Bolt

Name: 1 Inch 316-NM Stainless Steel Chain Shackle with Oversized Bolt
Brand: Lexco Cable Manufacturing
SKU: WIR-1de41f
Price: 49.99 USD
Availability: OutOfStock

SKU:WIR-1de41f

Heavy-duty 1" 316-NM Stainless Steel Shackle with Oversized Bolt, drop-forged for strength, load-rated to 10,000 lb, meets federal specs.

$49.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

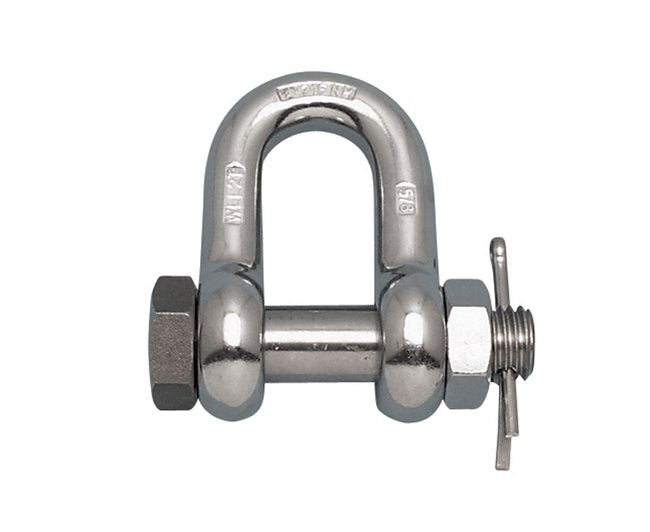

The 1 Inch Size A 316-NM Stainless Steel Chain Shackle with Oversized Bolt is a heavy-duty and corrosion-resistant shackle designed for robust chain applications. Crafted from high-quality 316-NM stainless steel, this shackle is drop forged for superior strength and load-rated to 10,000 lb. It meets federal specifications RR-C-271F, type IVB, class 3 requirements, ensuring compliance with stringent standards for reliability and durability.

Product Specifications

Note 0

I/A/W federal. Specification RR-C-271F, type IVB, class 3, (except 316 stainless steel). Marked to the nearest fractional ton.

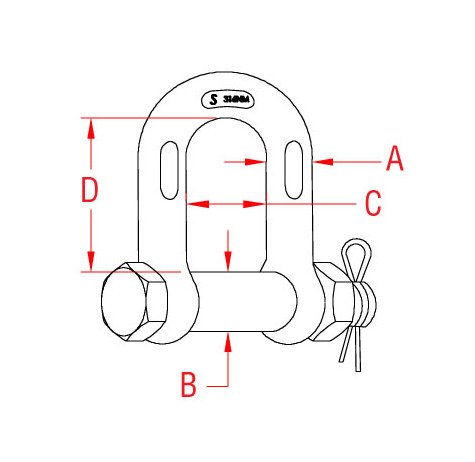

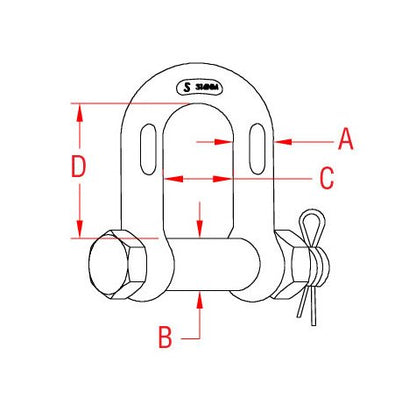

Specifications Applications

Chain

Specifications C

1.67 "

Specifications D

3.20 "

Specifications Dimension B

1.13 "

Specifications Key Features

Drop Forged | Import | Load Rated

Specifications Material

316-NM Stainless Steel

Specifications Size A

1 "

Specifications Weight

4.85 lb

Specifications Wll

10,000 lb

CAGE

0T9L4

NAICS

332722

PSC

5306
