1 Inch 316-NM Stainless Steel Shackle Bolt

1 Inch 316-NM Stainless Steel Shackle Bolt

SKU:WIR-357c14

Durable 1 Inch 316-NM Stainless Steel Shackle Bolt for heavy-duty lifting & towing applications. Corrosion-resistant & load-rated, includes cotter pin & nut.

Regular price $24.99
Regular price Sale price $24.99
Sale

Initiate Order

1 Inch 316-NM Stainless Steel Shackle Bolt

1 Inch 316-NM Stainless Steel Shackle Bolt

$24.99

Quantity: 1

Claim Your Seller Account

1 Inch 316-NM Stainless Steel Shackle Bolt

1 Inch 316-NM Stainless Steel Shackle Bolt

$24.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

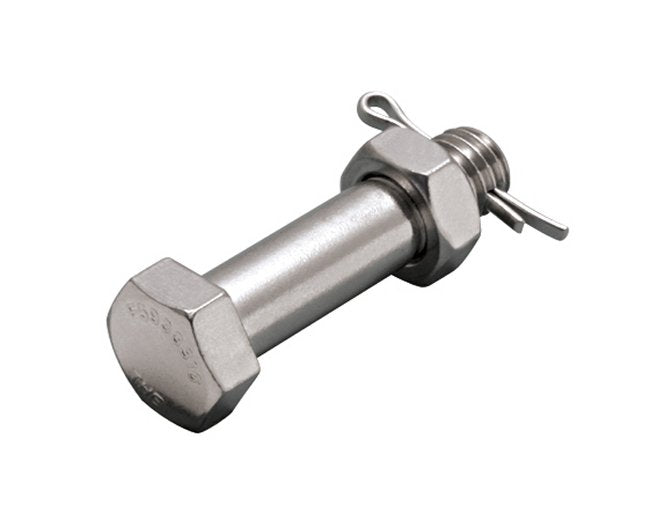

The 1 Inch 316-NM Stainless Steel Shackle Bolt is a durable and reliable component used in wire rope assemblies for lifting and towing applications. Precision engineered from high-quality 316-NM stainless steel, this drop-forged shackle bolt ensures exceptional strength and corrosion resistance, meeting stringent industry standards. With a working load limit of 10,000 lb, this bolt is designed for heavy-duty performance. It is compatible with chain and anchor shackle bodies (P0115-BD, P0116-BD) and comes complete with a cotter pin and nut for easy installation. Upgrade your wire rope hardware with this premium shackle bolt for increased safety and efficiency.

Product Specifications

Note 0
Replacement bolt. Compatible with chain (P0115-BD) & anchor (P0116-BD) shackle bodies. Cotter pin and nut included.

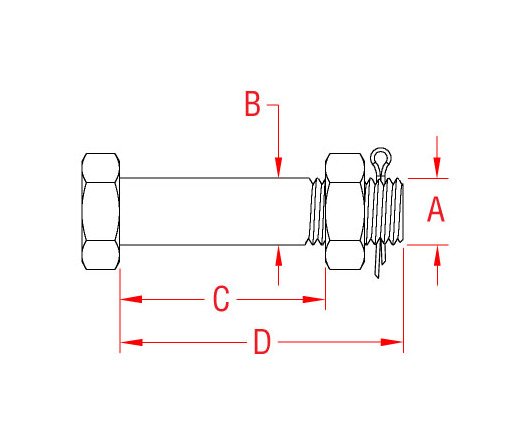

Specifications C
3.50 "
Specifications D
4.69 "
Specifications Dimension A
1-1/8 in.-7
Specifications Dimension B
1.13 "
Specifications Key Features
Drop Forged | Import | Load Rated
Specifications Material
316-NM Stainless Steel
Specifications Size
1 "
Specifications Weight
2.11 lb
Specifications Wll
10,000 lb
CAGE
0T9L4
NAICS
332722
PSC
5306
