1 Inch 316-NM Stainless Steel US Anchor Shackle with Oversized Screw Pin
1 Inch 316-NM Stainless Steel US Anchor Shackle with Oversized Screw Pin
SKU:WIR-183ffb
Premium 1" 316-NM Stainless Steel Anchor Shackle with 10,000 lb load rating, ASME & DFARS compliant.
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
1 Inch 316-NM Stainless Steel US Anchor Shackle with Oversized Screw Pin
$49.99
Quantity: 1
Claim Your Seller Account
1 Inch 316-NM Stainless Steel US Anchor Shackle with Oversized Screw Pin
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The 1 Inch Size A 316-NM Stainless Steel US Anchor Shackle with Oversized Screw Pin is a premium quality shackle designed for heavy-duty anchor applications. It features a load rating of 10,000 lb and is drop forged for maximum strength. This shackle is made in the USA, meets ASME B30.26-2004 and DFARS compliance standards. Compliant with federal specifications RR-C-271F, type IVA, class 2, except 316 stainless, this shackle is ideal for secure and reliable anchoring needs.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Note 0
I/A/W federal. Specification RR-C-271F, type IVA, class 2, except 316 stainless. Meets ASME B30.26-2004 American National Standard. DFARS compliant shackles. S0116-NM nitronic anchor shackles also available.
Specifications Applications
Anchor

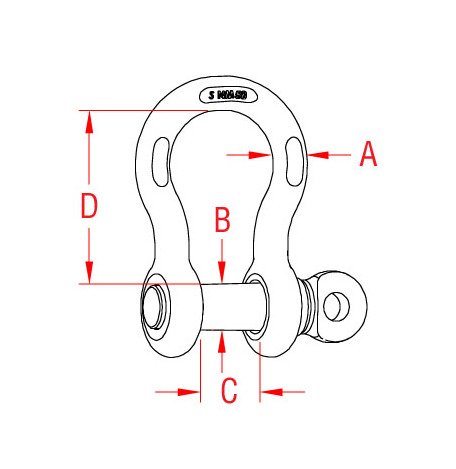

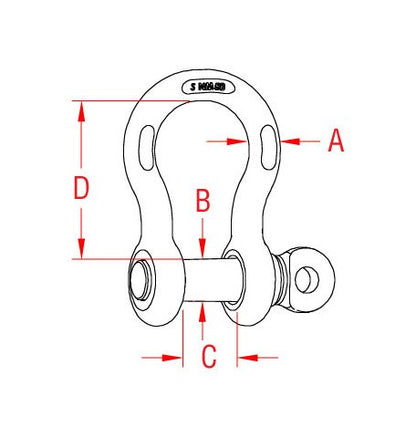

Specifications C
1.70 "
Specifications D
3.80 "
Specifications Dimension B
1.13 "
Specifications Key Features
Drop Forged | Load Rated | Made in USA
Specifications Material
316-NM Stainless Steel
Specifications Size A
1 "
Specifications Weight
5.18 lb
Specifications Wll
10,000 lb
CAGE
0T9L4
NAICS
332999
PSC
5340
