1 Inch 316 Stainless Steel Basic-Check Threaded In-Line Check Valve

1 Inch 316 Stainless Steel Basic-Check Threaded In-Line Check Valve

INL-2daa75

Versatile 1" 316 SS Basic-Check Threaded Check Valve for precise shutoff in multiple applications.

$149.99
$149.99
Sale

Initiate Order

1 Inch 316 Stainless Steel Basic-Check Threaded In-Line Check Valve

1 Inch 316 Stainless Steel Basic-Check Threaded In-Line Check Valve

$149.99

Quantity: 1

Claim Your Seller Account

1 Inch 316 Stainless Steel Basic-Check Threaded In-Line Check Valve

1 Inch 316 Stainless Steel Basic-Check Threaded In-Line Check Valve

$149.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

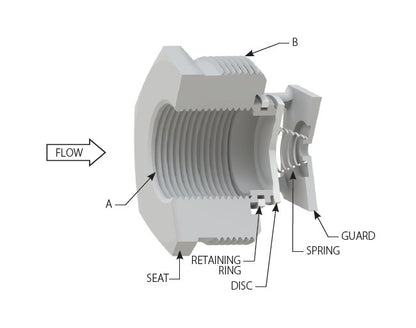

The 1 Inch 316 Stainless Steel Basic-Check Threaded In-Line Check Valve is a versatile non-slam valve designed for reliable, low-maintenance service with liquids, steam, and gases across various pressure and temperature ranges. This valve features a guard cage, spring, valve disc, retaining ring, and seat, offering precise metal-to-metal sealing for tight shutoff. With a line size of 1/4" to 2 1/2" and a working pressure of 450 to 6000 CWP, it ensures horizontal or vertical installation with easy maintenance. Ideal for applications in autoclaves, chemical lines, steam lines, and more.

Ready to Grow Without Cash Flow Constraints?

Get Net 30, 60, or 90 day terms at 0% interest on any purchase

Check Your Eligibility Now
Ready to Grow Without Cash Flow Constraints?

Product Specifications

Application 0
Autoclaves | Boiler Feed & Discharge | Chemical Lines | Compressor Discharge | Condensate Lines | Cookers | Cooling Towers | Crude & Refined Product Lines | Cryogenics | Digester | Evaporators | Fly Ash System | Generator Inlet & Discharge | Hydraulic Lines | Metering Pumps | Mine Dewatering | Nitrogen Purge | Process Lines | Pump Discharge | Refrigeration | Steam Lines | Vacuum Breaker | Water Lines | Water Treatment
Available Soft Seat Materials Available Soft Seat Materials
Buna-N (-70 to 250ºF) | EPDM (-75 to 300ºF) | TFE®-Viton® (-40 to 400ºF) | Viton® (-40 to 400ºF) | Zelon® (37 to 450ºF)
Codes And Standards Ansi
B1.20.1 | B16.11
Codes And Standards Mss
SP-25
Features 0
1/4" to 2 1/2" Line size450 to 6000 CWPThreaded endsStainless Steel ConstructionSpring-assisted silent closingHorizontal or vertical installationTight shut-off - lapped disc & seatEasy MaintenanceVersatile
Materials Of Construction Disc
316 SS
Materials Of Construction Guard
CF8M
Materials Of Construction Retaining Ring
316 SS
Materials Of Construction Seat
316 SS/Buna
Materials Of Construction Spring
316 SS
Options 0
Inconel® 750 Spring Soft seat
Specifications Approx Net Weight Each
1.25 lb | 0.6 kg
Specifications Cold Working Pressure
3000 psig | 207 barg
Specifications Cv
23.1
Specifications Ends
NPT (Threaded)
Specifications Friction Loss Feet Of Pipe
7
Specifications Friction Loss Meter Of Pipe
2.1
Specifications Line Size Inlet Fnpt A
1.00 in
Specifications Outside Thread Mnpt B
2.00 in
Specifications Series
Basic-Check®
Specifications Size
1.00 in | DN 25
Specifications Style
BSSH6
Specifications Temperature Rating
-70 to 250 ºF | -56.67 to 121.11 ºC
Specifications Valve Cracking Pressure
0.36 psi | 0.025 bar | 10.1 in.water | 257 mm.water | 18.8 mmHg
Specifications Valve Cracking Pressure Tolerance
±10%
Specifications Working Steam Pressure
2460 psig
