1 Inch 316 Stainless Steel Bow Shackle

Name: 1 Inch 316 Stainless Steel Bow Shackle
Brand: Lexco Cable Manufacturing
SKU: WIR-798602
Price: 24.99 USD
Availability: OutOfStock

SKU:WIR-798602

High-strength 1 Inch 316 Stainless Steel Bow Shackle for lifting and towing needs. Precision-cast and snag pin-free for enhanced safety.

$24.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

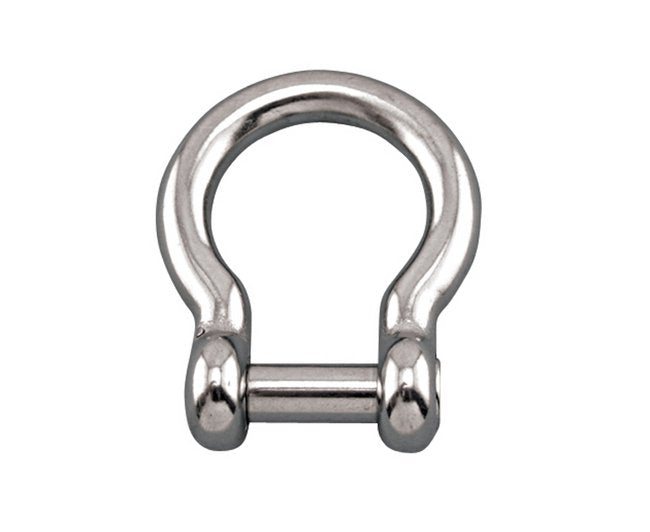

The 1 Inch 316 Stainless Steel Bow Shackle is a premium wire rope hardware designed for heavy lifting and towing applications. Crafted from durable 316 stainless steel, this bow shackle offers exceptional strength with a Working Load Limit of 6,000 lb. Its precision-cast construction ensures reliability, while the snag pin-free design enhances safety and ease of use. Recommended by industry leader suncorÂ®, this shackle is ideal for both consumer and institutional buyers seeking top-tier quality and performance.

Product Specifications

Note 0

No snag pin sits flush with body of shackle. Larger sizes with slotted head. suncorÂ® recommends the use of a locking fluid with this type of shackle.

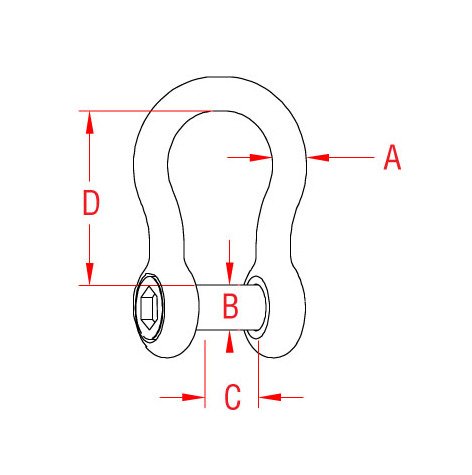

Specifications C

1.95 "

Specifications D

4.42 "

Specifications Dimension B

0.96 "

Specifications Key Features

Import | Precision Cast

Specifications Material

316 Stainless Steel

Specifications Shackle Type

Bow Shackle

Specifications Size A

1 "

Specifications Snag Pin Availability

Specifications Weight

4.30 lb

Specifications Wll

6,000 lb

CAGE

0T9L4

NAICS

332999

PSC

5340
