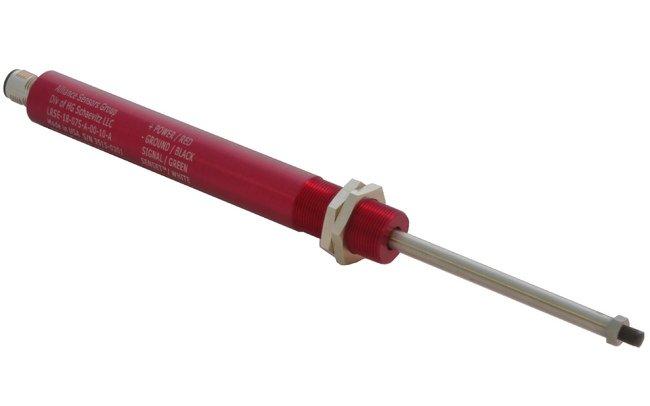

1 Inch Aluminum Spring Loaded Linear Sensor - 4-20mA Output
1 Inch Aluminum Spring Loaded Linear Sensor - 4-20mA Output
SKU:SPR-696eec
High-precision 1-inch aluminum spring loaded sensor with 4-20mA output, ideal for industrial applications.
Regular price
$89.99
Regular price
Sale price
$89.99
Unit price
per
Initiate Order
1 Inch Aluminum Spring Loaded Linear Sensor - 4-20mA Output
$89.99
Quantity: 1
Claim Your Seller Account
1 Inch Aluminum Spring Loaded Linear Sensor - 4-20mA Output
$89.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Ideal for precise linear position sensing, this aluminum spring loaded sensor features a 1-inch stroke and 4-20 milliampere output current. With an operating temperature range of -20 to 85°C, exceptional linearity of <0.25% of full scale, and a quick 300 Hz update rate, this sensor ensures accurate and reliable measurements. CE approved and designed with high-quality materials, it guarantees durability and performance in industrial applications.
Product Specifications
Technical Specs Brands
Alliance Sensors Group
Technical Specs Cable Type
Axial
Technical Specs European Conformity Ce Approved
Yes
Technical Specs Linearity
<0.25 % of Full Scale
Technical Specs Material
Aluminum Body
Technical Specs Output Current
4 to 20 mA
Technical Specs Outside Diameter
3/4 in
Technical Specs Range
1 in
Technical Specs Resolution
0.025 % of Full Scale
Technical Specs Sensor Type
Spring Loaded
Technical Specs Size
3/4 in
Technical Specs Stroke
1 in
Technical Specs Temperature Range
-20 to 85 ºC
Technical Specs Termination
1 m Cable
Technical Specs Update Rate
300 Hz
