1 Inch Female Elbow Connector for NPT Threads
1 Inch Female Elbow Connector for NPT Threads
SKU:SFE-61857b
High-performance 1 Inch Female Elbow Connector for seamless tube-to-NPT thread connections. Patented design ensures safety, precision, and cost savings.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
1 Inch Female Elbow Connector for NPT Threads
$29.99
Quantity: 1
Claim Your Seller Account
1 Inch Female Elbow Connector for NPT Threads
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

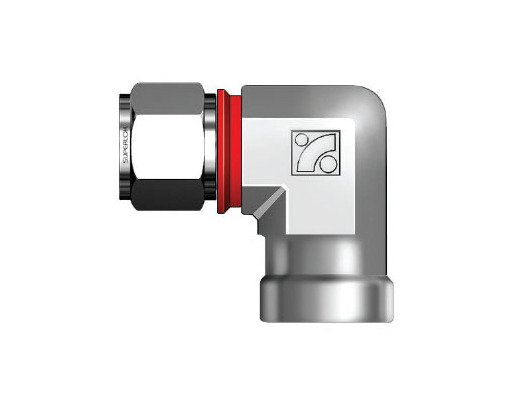

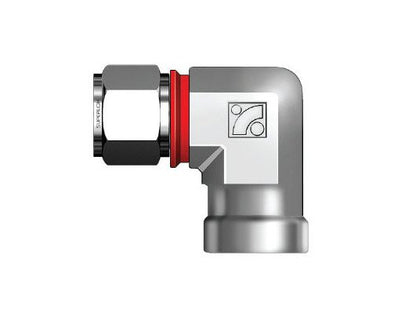

The SFEI Series 1 Inch Female Elbow Connector is designed to seamlessly join fractional tubes to male NPT threads with precision and reliability. Crafted from high-quality materials including Alloy 625, Alloy 825, and Stainless Steel, this connector ensures durability and resistance to high pressures and chemical environments. Featuring i-Fitting® components for perfect compression and safety, this patented design revolutionizes valve connections, enhancing productivity and reducing costs. Ideal for industrial applications requiring secure and efficient fluid connections.
Product Specifications
Features Features
i-Fitting® components include: body, front & back ferrule, nut, identification band, and check ringThe check ring is essentially a built-in gap gauge, which separates when a fitting is tightened to the point of perfect compressionSolves over- and under-tightening problemsIncreases installer safety in high pressure and dangerous chemical environmentsImproves productivity and reduces costsIndustry changing, patented design by BMTApplicable to valve connections
Note Note
Dimensions and Drawings are for reference only and are subject to change without prior notice.Sizes, pressure classes, and end connections not listed are available upon request.Dimensions shown with SUPERLOK® nuts finger-tight, where applicable.

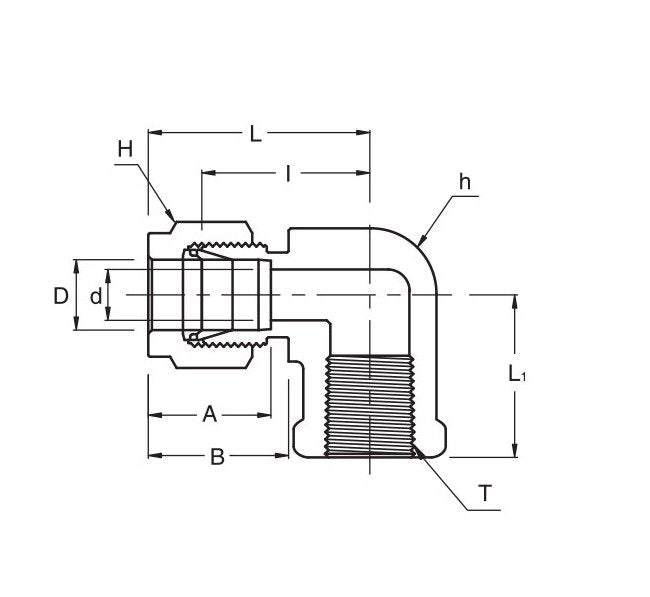

Technical Specs Connection Type
Female
Technical Specs Dimension A
31.24 mm
Technical Specs Dimension B
26.41 mm
Technical Specs Dimension I
41.40 mm
Technical Specs Dimension L
53.59 mm
Technical Specs Dimension L1
38.10 mm
Technical Specs Material
Alloy 625 | Alloy 825 | Alloy C-276 | Aluminum | Brass | Carbon Steel | Monel Alloy 400 | Stainless Steel
Technical Specs Minimum Dimension D
22.35 mm
Technical Specs Standard Size
1/4 to 1 in
Technical Specs Thread Size T
1 in
Technical Specs Thread Type
National Pipe Thread (NPT)
Technical Specs Tube Outside Diameter D
1 in
Technical Specs Width Across Flat H
1-1/2 in
