1 Inch Hex Long Nipple Fitting - IHLN Series
1 Inch Hex Long Nipple Fitting - IHLN Series
SKU:IHL-aba416
High-quality 1 Inch Hex Long Nipple Fitting for secure and precise connections in various applications.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
1 Inch Hex Long Nipple Fitting - IHLN Series
$24.99
Quantity: 1
Claim Your Seller Account
1 Inch Hex Long Nipple Fitting - IHLN Series
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

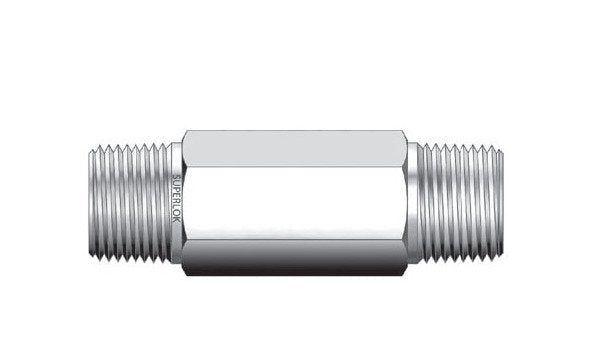

The IHLN Series 1 Inch Hex Long Nipple Fitting is a high-quality mechanical component designed for durability and precision. Featuring Male NPT Threads and constructed from 316 Stainless Steel, Brass, or Carbon Steel, it ensures reliable performance in various applications. With dimensions of 22.4mm (Dimension E) and 34.9mm (Dimension H), this fitting is engineered to meet rigorous standards, providing seamless integration and secure connections. Ideal for industrial, commercial, and institutional use, this fitting offers exceptional quality and compliance with industry specifications.
Product Specifications
Note Note

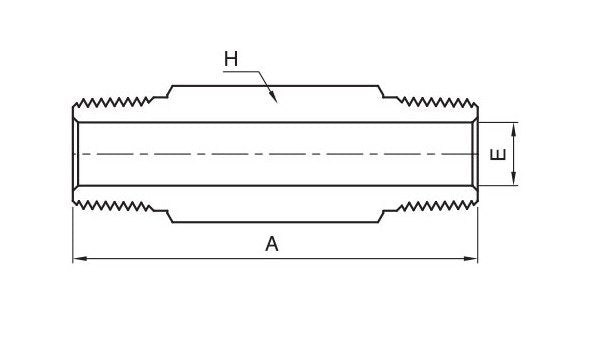

Dimensions and Drawings are for reference only and are subject to change without prior notice.Sizes, pressure classes, and end connections not listed are available upon request.Dimensions shown with SUPERLOK® nuts finger-tight, where applicable.
Technical Specs Dimension E
22.4 mm
Technical Specs Dimension H
34.9 mm
Technical Specs Material
316 Stainless Steel | Brass | Carbon Steel
Technical Specs Pipe Size
1 in
Technical Specs Thread Type
National Pipe Thread (NPT)
