1 Inch HT Style PTFE Lined Check Valve - Flanged & Drilled
1 Inch HT Style PTFE Lined Check Valve - Flanged & Drilled
SKU:HTS-d38901
High-performance 1" PTFE Lined Check Valve with ANSI/ASME B16.5 Flanged Ends. Reliable, durable, and USA-made.
Regular price
$129.99
Regular price
Sale price
$129.99
Unit price
per
Initiate Order
1 Inch HT Style PTFE Lined Check Valve - Flanged & Drilled
$129.99
Quantity: 1
Claim Your Seller Account
1 Inch HT Style PTFE Lined Check Valve - Flanged & Drilled
$129.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The 1 Inch HT Style PTFE Lined Check Valve is designed for high performance and durability. Featuring ANSI/ASME B16.5 Class 150 flanged ends, this valve boasts a solid Polytetrafluoroethylene (PTFE) liner ensuring complete coverage of wetted surfaces. With a standard cracking pressure of 0.500 psi and various seat material options, including Aflas® and Neoprene, this valve offers reliable operation and versatility. Made in the USA, this valve is perfect for applications requiring precision and quality.
Product Specifications
Additional Information

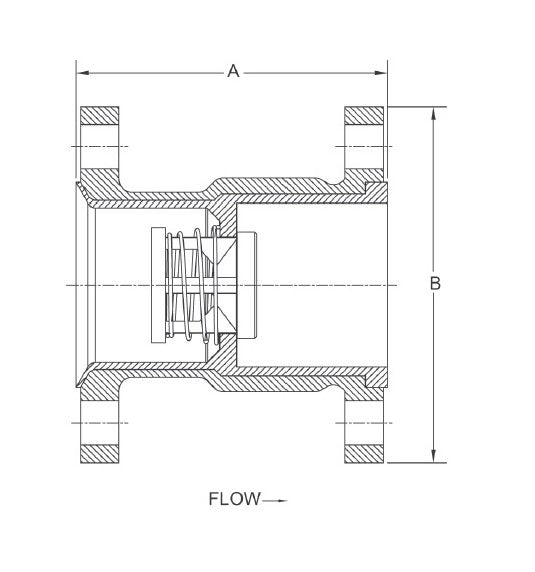

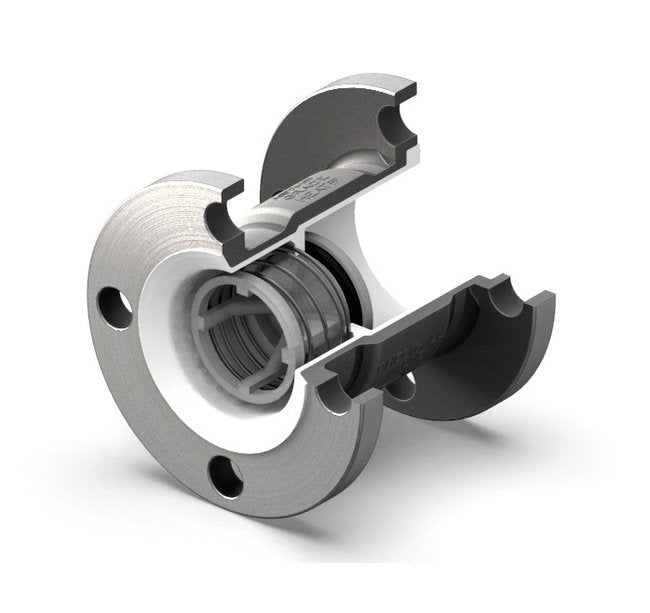

Style HT bodies are made of cast carbon steel only. The liner is made of virgin Polytetrafluoroethylene (PTFE). It is installed as one solid piece of Polytetrafluoroethylene (PTFE) and the internal geometrical shape is machined. The Polytetrafluoroethylene (PTFE) liner has a minimum wall thickness of 3/32 inch, which guarantees against pin holes which can be present in fused liners.The HT valve can also be used as a low pressure relief valve or vacuum breaker by using the desired spring settings.The Check-All® Flanged and Drilled - Fluoropolymer Polytetrafluoroethylene (PTFE) Lined (HT) check valve is a one-piece body valve with ANSI/ASME B16.5 Class 150 flanged ends. The valve has a solid one-piece Polytetrafluoroethylene (PTFE) liner, which covers the flange faces out to the raised face diameter. All wetted surfaces are fluoropolymer (Polytetrafluoroethylene (PTFE)/FEP/PFA) including the FEP encapsulated stainless steel spring.
Note
Made in USA.
Specifications Cast Body Material
Wrought Carbon Steel (WCB/WCC) = CS
Specifications Certifications
European Conformity (CE) Non-PED Statement
Specifications Liner Material
Polytetrafluoroethylene (PTFE)
Specifications Nominal Pipe Size
1 in
Specifications Non Shock Pressure Rating At 100 Degree Fahrenhei
55 psig
Specifications Note For Material
Listed above are the most common material selections. Please contact the factory for additional options.
Specifications Note For Standard Cracking Pressure
0.500 psi is the only standard cracking pressure for spring materials other than Stainless Steel.
Specifications Seat Material
Aflas® = AS | Buna-N = BN | Ethylene Propylene Diene Monomer (EPDM) = EP (EP seats not recommended for use with Carbon Steel valves.) | Fluoro-Elastomer (FKM) = VT | Neoprene = NE | Perfluoroelastomer = KZ | Plastic to Plastic = MT (No O-Ring)
Specifications Size Code
H
Specifications Special Options
T = FEP Encapsulated Spring (Contact the factory for more options)
Specifications Spring Material
316 Stainless Steel = SS | Alloy 400 or Monel® = MO | Alloy C-276 = HC | Inconel® X750 or Alloy X750 = IX | Titanium = TI
Specifications Standard Cracking Pressure
0.500 psi
Specifications Valve Style
HT
