The Check-All® 1 Inch HV Style Flanged Check Valve is a high-quality, one-piece cast body valve designed for optimum performance in applications requiring high flow rates with minimal pressure drops. Compliant with ASME/ANSI B16.5 Class 150 standards, this check valve is available in CF8M Stainless Steel or WCB/WCC Carbon Steel materials, ensuring durability and reliability. With a standard cracking pressure of 0.125 psi, this valve can also function effectively as a low-pressure relief valve or vacuum breaker. Engineered for use with mating ANSI Class 150 flanges, the HV valve offers versatility, quality craftsmanship, and exceptional performance for a wide range of industrial applications.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Additional Information

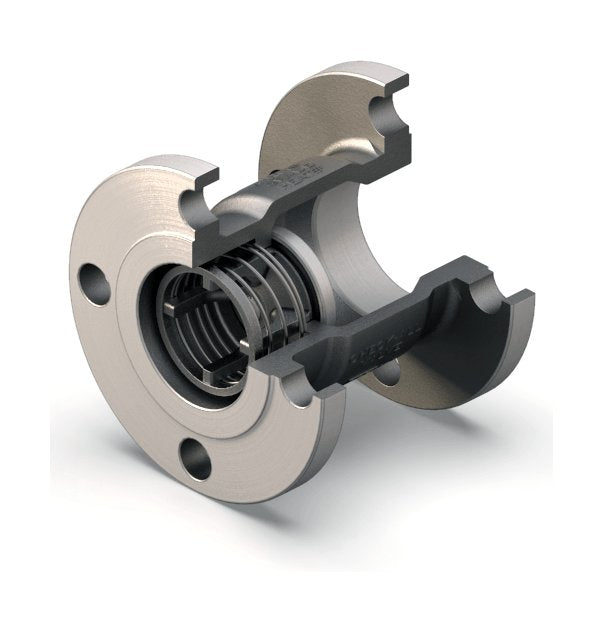

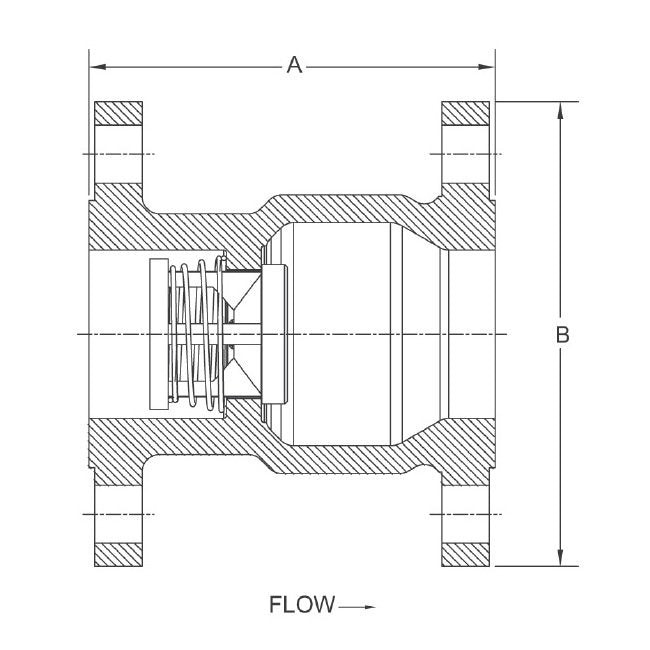

The Check-All® Flanged and Drilled (HV) check valve is a one-piece cast full-bodied spring loaded check valve with ANSI/ASME B16.5 Class 150 flanged ends. The HV series spring check valve is used when higher flow rates and lower pressure drops are required. The valve is available in sizes 1 through 10 inches and standard materials of CF8M (cast 316 stainless) and WCB/WCC (cast carbon steel). This check valve is designed for use with mating ANSI class 150 flanges. Other materials are available upon request.
Note
Made in USA.Many valves in this series can be supplied with B16.34 certification. Consult the factory for more information.
Specifications Body Material Availability
CF8M Stainless Steel = SS - Standard | Wrought Carbon Steel (WCB/WCC) - Standard
Specifications Cast Body Material
CF8M Stainless Steel = SS | Wrought Carbon Steel (WCB/WCC) = CS
Specifications Certifications
European Conformity (CE) PED 2014/68/EU Complaint | International Organization for Standardization (ISO 9001) Certified
Specifications Nominal Pipe Size
1 in
Specifications Non Shock Pressure Rating
American Society of Mechanical Engineers (ASME)/American National Standards Institute (ANSI) B16.5 Class 150
Specifications Note For Material
Listed above are the most common material selections. Please contact the factory for additional options.
Specifications Note For Standard Cracking Pressure
0.125 psi springs are not recommended for installations with flow vertical down.
Specifications Seat Material
"Metal-to-Metal" = MT | Aflas® = AS | Buna-N = BN | Ethylene Propylene Diene Monomer (EPDM) = EP (EP seats not recommended for use with Carbon Steel valves.) | Fluoro-Elastomer (FKM) = VT | Neoprene = NE | Perfluoroelastomer = KZ | Polytetrafluoroethylene (PTFE) = TF
Specifications Size Code
H
Specifications Special Options
T = FEP Encapsulated Spring (Contact the factory for more options)
Specifications Spring Material
17-7PH Stainless Steel = PH | 316 Stainless Steel = SS | Alloy B = HB | Alloy C-276 = HC | Inconel® X750 or Alloy X750 = IX | Monel® 400 = MO | Titanium = TI
Specifications Standard Cracking Pressure
0.125 psi
Specifications Valve Style
HV
