1 Inch Inlet Light Duty Line Vac Conveyor

Name: 1 Inch Inlet Light Duty Line Vac Conveyor
Brand: Exair LLC
SKU: LIG-db133b
Price: 299.99 USD
Availability: OutOfStock

SKU:LIG-db133b

Transform hoses into conveyors with the 1 Inch Inlet Light Duty Line Vac Conveyor. Ideal for small material volumes over short distances, compact Aluminum design ensures quiet, efficient operation.

$299.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

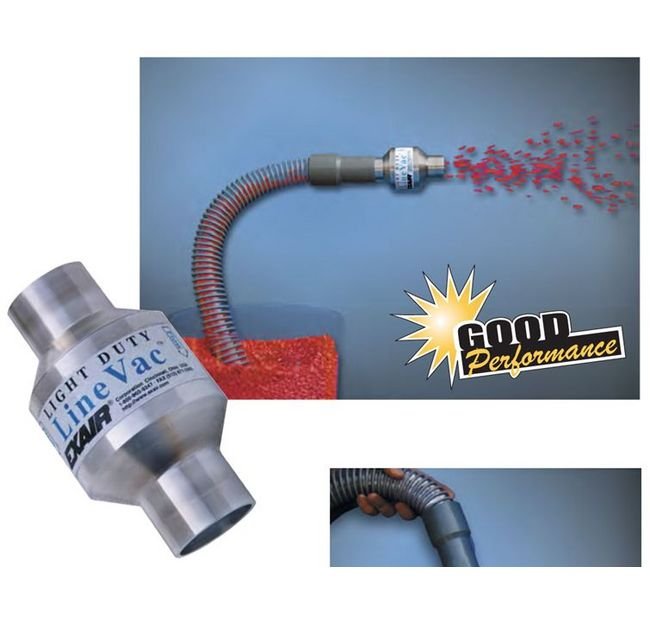

The 1 Inch Inlet Light Duty Line Vac Conveyor by EXAIR offers a seamless solution for conveying small volumes of materials efficiently over short distances. Designed to convert an ordinary hose or tube into a conveyor for various materials like scrap, trim, and bulk materials, this conveyor boasts Aluminum construction, compact design, and compatibility with standard hoses or tubes. With moderate throughput capability, 80 psig pressure rating, and no moving parts, it ensures quiet, reliable operation suitable for a range of applications including chip removal, fiber tensioning, hopper loading, and more.

Product Specifications

Specifications Advantages

Specifications Air Consumption

10.70 SCFM | 303 SLPM

Specifications Applications

Specifications Dimension E

2.41 in | 61 mm

Specifications Dimension F

1.06 in | 27 mm

Specifications Dimension G

1/4 NPT

Specifications Inlet Size

1 in | 25 mm

Specifications Inside Diameter

0.75 in | 19 mm

Specifications Outlet Diameter

1 in | 25 mm

Specifications Outside Diameter

2.13 in | 54 mm

Specifications Overall Length

4.53 in | 115 mm

Specifications Pressure

80 psig | 5.5 bar

1 Inch Inlet Light Duty Line Vac Conveyor
