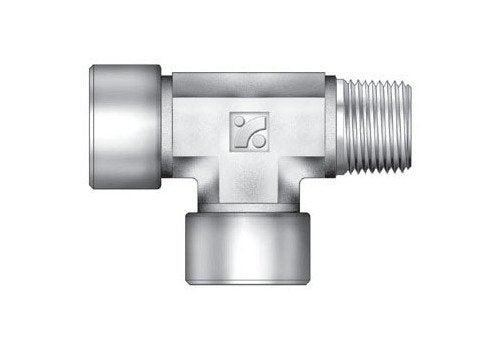

1-inch IRT Series Run Tee Fitting with Male and Female NPT Threads
1-inch IRT Series Run Tee Fitting with Male and Female NPT Threads
SKU:IRT-75c92a
Durable 1-inch run tee fitting with NPT threads for reliable performance in fluid handling systems.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
1-inch IRT Series Run Tee Fitting with Male and Female NPT Threads
$29.99
Quantity: 1
Claim Your Seller Account
1-inch IRT Series Run Tee Fitting with Male and Female NPT Threads
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The 1-inch IRT Series Run Tee Fitting is designed for optimal performance in fluid handling systems. Constructed from durable 316 Stainless Steel, Brass, or Carbon Steel, this fitting ensures corrosion resistance and long-lasting durability. With precise dimensions meeting exacting standards, including National Pipe Thread (NPT) connections, it offers reliable and leak-free operation. Suitable for a wide range of applications, this fitting guarantees superior performance with dimensional accuracy and exceptional material quality.
Product Specifications
Note Note
Dimensions and Drawings are for reference only and are subject to change without prior notice.Sizes, pressure classes. and end connections not listed are available upon request.

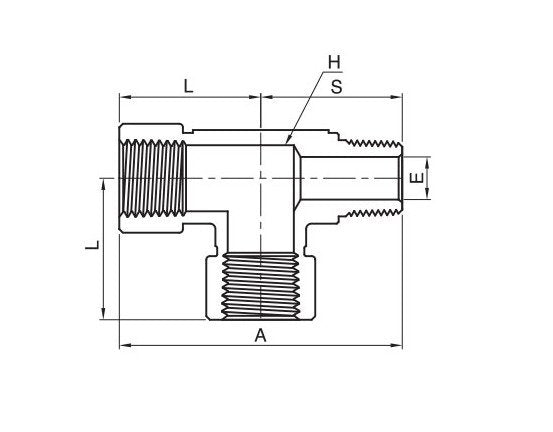

Technical Specs Dimension A
97.7 mm
Technical Specs Dimension E
22.4 mm
Technical Specs Dimension H
42.9 mm
Technical Specs Dimension L
48.5 mm
Technical Specs Dimension S
49.2 mm
Technical Specs Material
316 Stainless Steel | Brass | Carbon Steel
Technical Specs Pipe Size
1 in
Technical Specs Thread Type
National Pipe Thread (NPT)
