1 Inch Male to 1/4 Inch Female NPT Reducing Hex Bushing Fitting - IRHB Series

Name: 1 Inch Male to 1/4 Inch Female NPT Reducing Hex Bushing Fitting - IRHB Series
Brand: Superlok-Mako Products LLC
SKU: IRH-a18990
Price: 12.99 USD
Availability: OutOfStock

SKU:IRH-a18990

High-quality Reducing Hex Bushing Fitting with 1" Male to 1/4" Female NPT Threads. Durable materials, precise dimensions, industry-compliant.

$12.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

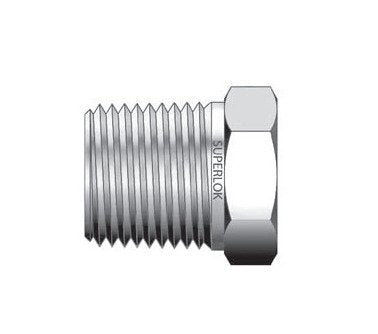

The IRHB Series Reducing Hex Bushing Fitting features a 1-inch male pipe size and a 1/4-inch female pipe size, with NPT threads for secure connections. Constructed from durable 316 stainless steel, brass, or carbon steel, it ensures reliability and longevity. With dimensions perfectly suited for various applications and compliant with industry standards, this fitting is an ideal choice for both consumer and institutional buyers.

Product Specifications

Note Note

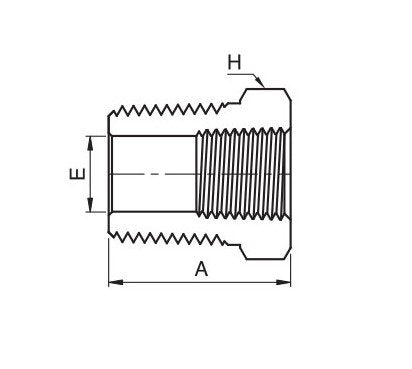

Dimensions and Drawings are for reference only and are subject to change without prior notice.Sizes, pressure classes. and end connections not listed are available upon request.

Technical Specs Dimension A

34.8 mm

Technical Specs Dimension E

11.4 mm

Technical Specs Dimension H

34.9 mm

Technical Specs Female Pipe Size

1/4 in

Technical Specs Male Pipe Size

1 in

Technical Specs Material

316 Stainless Steel | Brass | Carbon Steel

Technical Specs Thread Type

National Pipe Thread (NPT)

1 Inch Male to 1/4 Inch Female NPT Reducing Hex Bushing Fitting - IRHB Series
