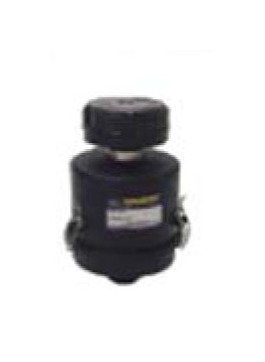

The 1 Inch Spinmeister Extreme Duty Inlet Air Filter with Polyester Element is engineered for high dust environments, significantly extending filter element life. Featuring centrifugal flow with 85% efficiency at 15 microns, it includes a 99%+ pleated element for fine filtration. Constructed with durable composite materials, this configurable unit excels in applications like blowers, fans, and industrial equipment, ensuring top-notch air quality and equipment longevity.
Product Specifications
Dimensions Dimension A
10-5/8 in
Dimensions Dimension B
1-1/2 in
Dimensions Dimension C
7 in
Dimensions Dimension Tolerance
1/4 in
Features And Specifications 0
Polyester: 99%+ removal efficiency standard to 5 micronPaper: 99%+ removal efficiency standard to 2 micronFilter housing has heavy gauge carbon steel base with low pressure drop bracket and outlet pipe designDurable carbon steel housing constructionAll small compact filters are a seamless drawn housingTemp (continuous): min -15 ºF (-26 ºC ) max 220 ºF (104 ºC )Filter change out differential: 10"-15" H20 over initial delta P
Option 0
Multiple Configurations AvailableSpinMeisters available in Polished AluminumVacuum Systems configurationsSelected Housings available in SSVarious Media for Element1/8" taps for pressure drop indicators on selected modelsMultiple connection types
Specifications Applications And Equipment
Blowers | Cement Industry | Engines | Fans | Foundries | Grain Elevators | Plastics Industry | Pneumatic Conveying Systems | Screw Compressors | Wood Chip, Paper and Pulp Industries
Specifications Approximate Weight
3.7 lb
Specifications Connection Style
Male Pipe Thread (MPT)
Specifications Element Material
Polyester
Specifications Note
Model offerings and design parameters may change without notice
Specifications Outlet Size
1 in
Specifications Rated Flow
55 scfm
Specifications Type
B
