1 Inch SPMBTI Positionable Male Branch Tee Fitting

Name: 1 Inch SPMBTI Positionable Male Branch Tee Fitting
Brand: Superlok-Mako Products LLC
SKU: SPM-83cc1d
Price: 34.99 USD
Availability: OutOfStock

SKU:SPM-83cc1d

Enhance installation safety and efficiency with the SPMBTI 1 Inch Positionable Male Branch Tee Fitting. Perfect for connecting fractional tubes to SAE/MS straight thread bosses.

$34.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

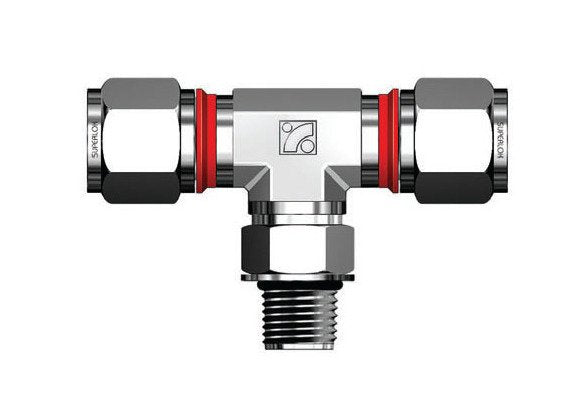

The SPMBTI Series 1 Inch Tube Outside Diameter Dimension A Positionable Male Branch Tee Fitting connects fractional tubes to SAE/MS straight thread bosses. This fitting features a robust design with i-Fitting® components, including a built-in gap gauge check ring for perfect compression, enhancing installer safety in high-pressure environments. Made from high-quality materials like Alloy 625, Stainless Steel, and more, this fitting ensures durability and reliability. Experience improved productivity and reduced costs with this industry-changing patented design by BMT.

Product Specifications

Features Features

i-FittingÂ® components include: body, front & back ferrule, nut, identification band, and check ringThe check ring is essentially a built-in gap gauge, which separates when a fitting is tightened to the point of perfect compressionSolves over- and under-tightening problemsIncreases installer safety in high pressure and dangerous chemical environmentsImproves productivity and reduces costsIndustry changing, patented design by BMTApplicable to valve connections

Note Note

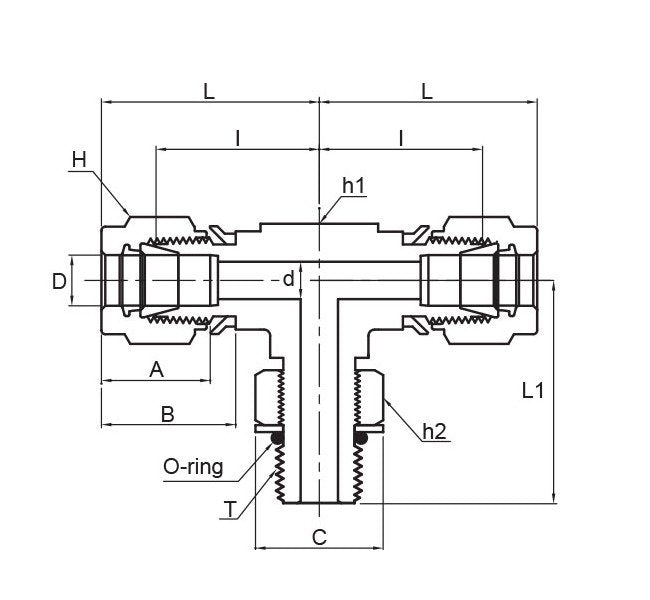

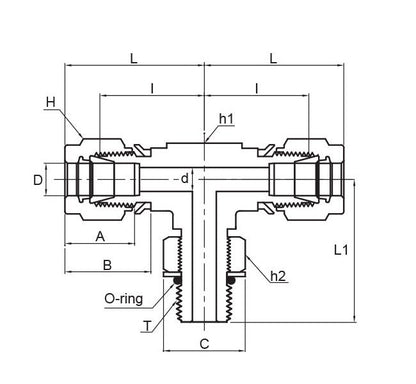

Dimensions and Drawings are for reference only and are subject to change without prior notice.Sizes, pressure classes, and end connections not listed are available upon request.Dimensions shown with SUPERLOKÂ® nuts finger-tight, where applicable.

Technical Specs Connection Type

Female

Technical Specs Dimension A

31.24 mm

Technical Specs Dimension B

26.42 mm

Technical Specs Dimension C

43.94 mm

Technical Specs Dimension I

38.35 mm

Technical Specs Dimension L

50.55 mm

Technical Specs Dimension L1

53.59 mm

Technical Specs Material

Technical Specs Minimum Dimension D

22.35 mm

Technical Specs Standard Size

1/4 to 1 in

Technical Specs Straight Thread T U

1-5/16-12 mm

Technical Specs Tube Outside Diameter D

1 in

Technical Specs Width Across Flat H

1-1/2 in

Technical Specs Width Across Flat H1

1-3/8 in

Technical Specs Width Across Flat H2

1-1/2 in
