1 Inch Standard Pattern Needle Valve with Male x Female NPT Thread
1 Inch Standard Pattern Needle Valve with Male x Female NPT Thread
SKU:STA-d224d3
High-pressure 1 Inch Needle Valve for industry standards compliance
Regular price
$59.99
Regular price
Sale price
$59.99
Unit price
per
Initiate Order
1 Inch Standard Pattern Needle Valve with Male x Female NPT Thread
$59.99
Quantity: 1
Claim Your Seller Account
1 Inch Standard Pattern Needle Valve with Male x Female NPT Thread
$59.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

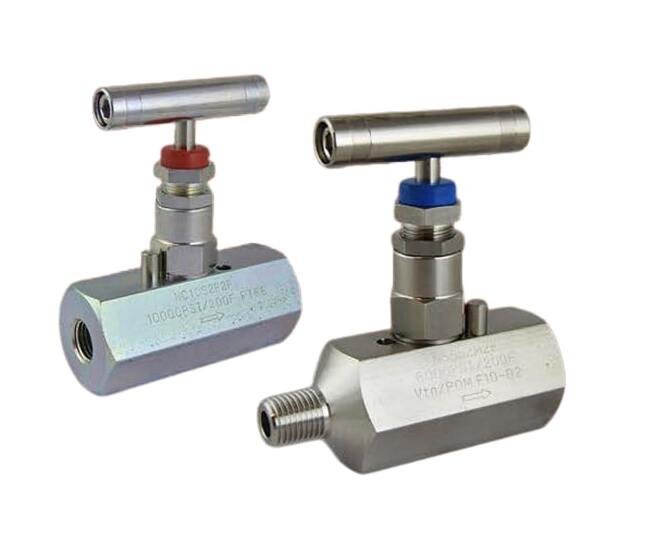

The 1 Inch Standard Pattern Needle Valve is expertly designed for high-pressure applications up to 6000 psi. Crafted from durable carbon material with a PolyOxyMethylene (POM) Soft Seat, this valve ensures reliable performance. With dimensions meeting ASME and NACE standards, and threads conforming to ASME B1.20.1, it guarantees precision and compliance in operation.
Product Specifications
Features Features
Threads Conform to ASME B1.20.1

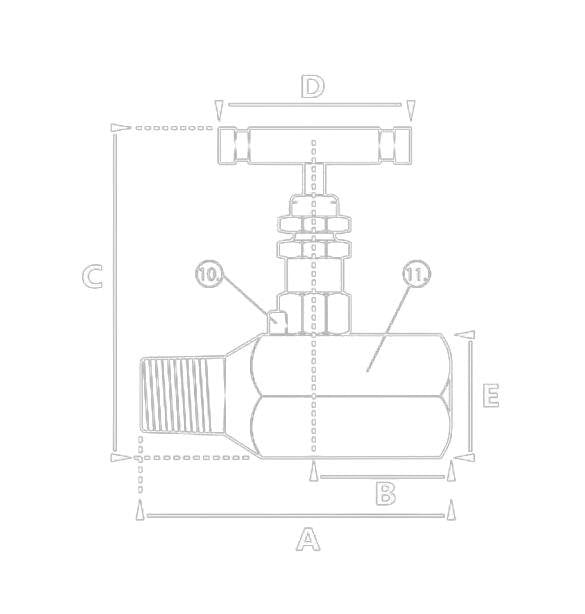

Technical Specs Dimension A
3.70 in
Technical Specs Dimension B
1.85 in
Technical Specs Dimension C
4.25 in
Technical Specs Dimension D
2.24 in
Technical Specs Dimension E
1.61 in
Technical Specs Industry Standards
American Society of Mechanical Engineers (ASME) B1.20.1 | National Association of Corrosion Engineers (NACE) Compliant
Technical Specs Material
Carbon
Technical Specs Seat Material
PolyOxyMethylene (POM) Soft Seat
Technical Specs Thread Size
1 in
Technical Specs Thread Type
Male x Female National Pipe Thread (NPT)
Technical Specs Working Pressure
6000 psi
