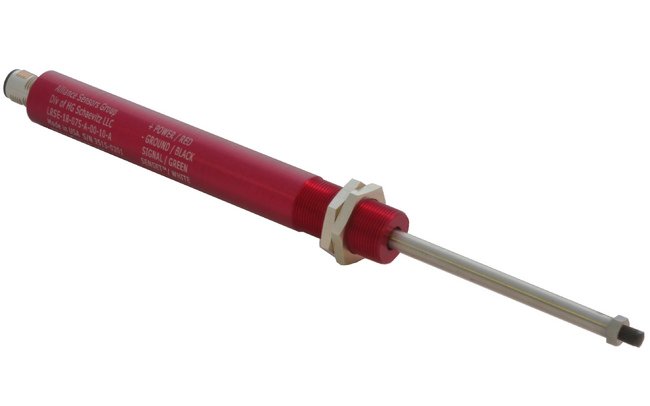

1 Inch Stroke Spring Loaded Linear Sensor with 0-10V DC Output
1 Inch Stroke Spring Loaded Linear Sensor with 0-10V DC Output
SKU:SPR-818b81
Precise 1-inch stroke linear sensor with 0-10V DC output for reliable position feedback in industrial applications.
Regular price
$129.99
Regular price
Sale price
$129.99
Unit price
per
Initiate Order
1 Inch Stroke Spring Loaded Linear Sensor with 0-10V DC Output
$129.99
Quantity: 1
Claim Your Seller Account
1 Inch Stroke Spring Loaded Linear Sensor with 0-10V DC Output
$129.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The 1 Inch Stroke Spring Loaded Linear Sensor is a precision instrument designed to provide accurate linear position feedback. With a durable aluminum body and a spring-loaded mechanism, this sensor ensures reliable performance in diverse industrial applications. It measures stroke with high linearity (<0.25% of full scale) and offers a wide temperature range (-40 to 105 ºC). The 0-10V DC output, coupled with a resolution of 0.025% of full scale and a fast update rate of 300 Hz, delivers precise data for efficient control systems. CE approved and meeting stringent quality standards, this sensor is ideal for both consumer and institutional needs.
Product Specifications
Technical Specs Brands
Alliance Sensors Group
Technical Specs Cable Type
Axial
Technical Specs European Conformity Ce Approved
Yes
Technical Specs Linearity
<0.25 % of Full Scale
Technical Specs Material
Aluminum Body
Technical Specs Output Direct Current Dc Voltage
0 to 10 V
Technical Specs Outside Diameter
3/4 in
Technical Specs Range
1 in
Technical Specs Resolution
0.025 % of Full Scale
Technical Specs Sensor Type
Spring Loaded
Technical Specs Size
3/4 in
Technical Specs Stroke
1 in
Technical Specs Temperature Range
-40 to 105 ºC
Technical Specs Termination
1 m Cable
Technical Specs Update Rate
300 Hz
