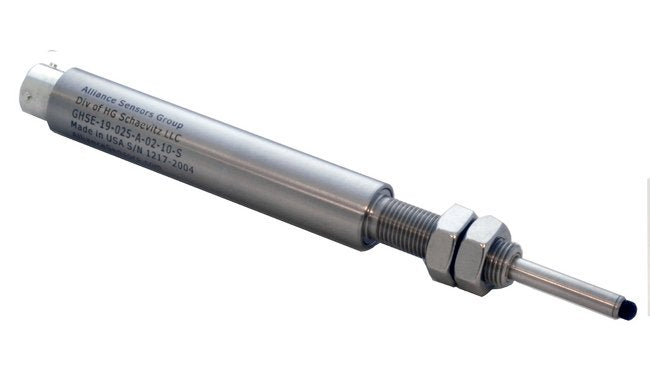

1 Inch Stroke Stainless Steel Linear Sensor with 0-10V DC Output
1 Inch Stroke Stainless Steel Linear Sensor with 0-10V DC Output
SKU:SPR-b40d60
Accurate 1 Inch Stroke Stainless Steel Linear Sensor with 0-10V DC Output. Reliable, precise, and CE-approved for industrial use.
Regular price
$89.99
Regular price
Sale price
$89.99
Unit price
per
Initiate Order
1 Inch Stroke Stainless Steel Linear Sensor with 0-10V DC Output
$89.99
Quantity: 1
Claim Your Seller Account
1 Inch Stroke Stainless Steel Linear Sensor with 0-10V DC Output
$89.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Meet your precision measurement needs with the Alliance Sensors Group 1 Inch Stroke Stainless Steel Spring Loaded Linear Sensor. This sensor offers a stroke range of 1 inch and provides a reliable 0 to 10 Volt DC output signal. Crafted with a durable stainless steel body, it operates effectively in temperatures ranging from -40 to 105 ºC. With exceptional linearity (<0.25% of full scale) and a high resolution of 0.025%, this sensor ensures accurate readings. Approved by European Conformity (CE), it is designed for quality and compliance, making it ideal for industrial and institutional applications.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Technical Specs Brands
Alliance Sensors Group
Technical Specs Connector Type
Axial Power Take-Off (PTO)
Technical Specs European Conformity Ce Approved
Yes
Technical Specs Linearity
<0.25 % of Full Scale
Technical Specs Material
Stainless Steel Body
Technical Specs Output Direct Current Dc Voltage
0 to 10 V
Technical Specs Outside Diameter
3/4 in
Technical Specs Range
1 in
Technical Specs Resolution
0.025 % of Full Scale
Technical Specs Sensor Type
Spring Loaded
Technical Specs Size
3/4 in
Technical Specs Stroke
1 in
Technical Specs Temperature Range
-40 to 105 ºC
Technical Specs Update Rate
300 Hz
