1 inch Tube Male Connector with NPT Thread, SMCI Series
1 inch Tube Male Connector with NPT Thread, SMCI Series
SKU:SMC-9dab0f
Precision-made 1" Tube Male Connector with NPT Thread for secure industrial connections
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
1 inch Tube Male Connector with NPT Thread, SMCI Series
$29.99
Quantity: 1
Claim Your Seller Account
1 inch Tube Male Connector with NPT Thread, SMCI Series
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

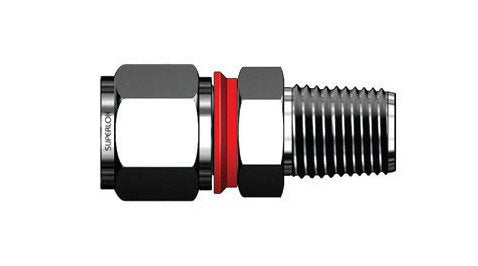

The SMCI Series 1 Inch Tube Male Connector Fitting is expertly designed to connect fractional tubes to female NPT threads with precision and reliability. Crafted from durable materials such as Alloy 625, Alloy 825, and Stainless Steel, this fitting ensures superior performance in various industrial applications. Featuring the innovative i-Fitting® design, this male connector includes essential components like the body, front & back ferrule, nut, identification band, and check ring. The patented check ring acts as a gap gauge, enhancing installer safety, productivity, and cost-efficiency. Ideal for valve connections, this fitting complies with industry standards and is adaptable to specific requirements.
Product Specifications
Features Features
i-Fitting® components include: body, front & back ferrule, nut, identification band, and check ringThe check ring is essentially a built-in gap gauge, which separates when a fitting is tightened to the point of perfect compressionSolves over- and under-tightening problemsIncreases installer safety in high pressure and dangerous chemical environmentsImproves productivity and reduces costsIndustry changing, patented design by BMTApplicable to valve connections
Note Note

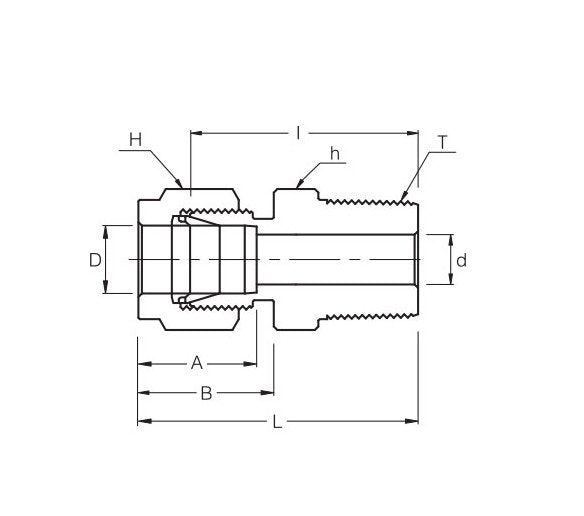

Dimensions and Drawings are for reference only and are subject to change without prior notice.Sizes, pressure classes, and end connections not listed are available upon request.Dimensions shown with SUPERLOK® nuts finger-tight, where applicable.
Technical Specs Connection Type
Male
Technical Specs Dimension A
31.24 mm
Technical Specs Dimension B
26.41 mm
Technical Specs Dimension I
50.03 mm
Technical Specs Dimension L
62.23 mm
Technical Specs Material
Alloy 625 | Alloy 825 | Alloy C-276 | Aluminum | Brass | Carbon Steel | Monel Alloy 400 | Stainless Steel
Technical Specs Minimum Dimension D
22.35 mm
Technical Specs Standard Size
1/4 to 1 in
Technical Specs Thread Size T
1 in
Technical Specs Thread Type
National Pipe Thread (NPT)
Technical Specs Tube Outside Diameter D
1 in
Technical Specs Width Across Flat H
1-1/2 in
