1 Inch Tube Outside Diameter Union Tee Fitting | SUTI Series
1 Inch Tube Outside Diameter Union Tee Fitting | SUTI Series
SKU:SUT-e46acc
Enhance tube connections with the SUTI Series 1 Inch Tube Outside Diameter Union Tee Fitting. Improves safety, productivity, and costs.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
1 Inch Tube Outside Diameter Union Tee Fitting | SUTI Series
$29.99
Quantity: 1
Claim Your Seller Account
1 Inch Tube Outside Diameter Union Tee Fitting | SUTI Series
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

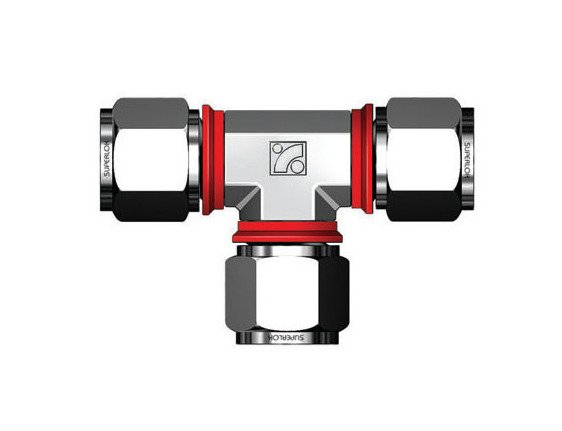

The SUTI Series 1 Inch Tube Outside Diameter Union Tee Fitting is a precision-engineered solution for connecting fractional tubes. Constructed from a variety of high-quality materials including Alloy 625, Alloy 825, Stainless Steel, and more, this fitting ensures durability and reliability. It features i-Fitting® components with a patented design by BMT, enhancing installer safety, improving productivity, and reducing costs. The built-in gap gauge check ring prevents over- and under-tightening, making it ideal for high-pressure and hazardous chemical environments.
Product Specifications
Features Features
i-Fitting® components include: body, front & back ferrule, nut, identification band, and check ringThe check ring is essentially a built-in gap gauge, which separates when a fitting is tightened to the point of perfect compressionSolves over- and under-tightening problemsIncreases installer safety in high pressure and dangerous chemical environmentsImproves productivity and reduces costsIndustry changing, patented design by BMTApplicable to valve connections
Note Note
Dimensions and Drawings are for reference only and are subject to change without prior notice.Sizes, pressure classes, and end connections not listed are available upon request.Dimensions shown with SUPERLOK® nuts finger-tight, where applicable.

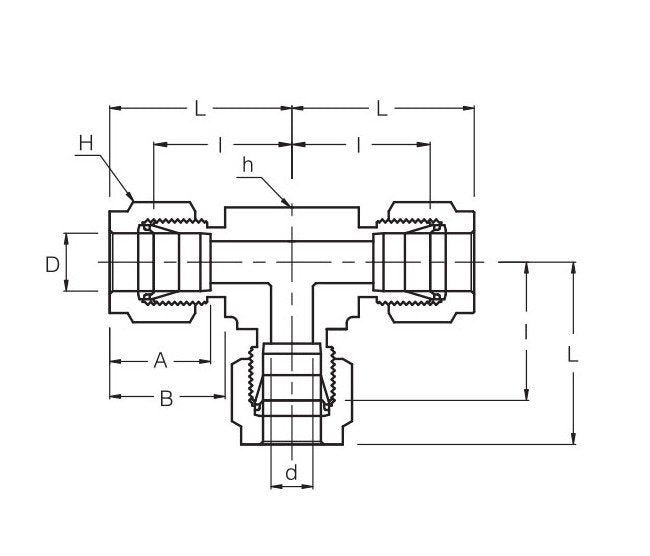

Technical Specs Dimension A
31.24 mm
Technical Specs Dimension B
26.41 mm
Technical Specs Dimension I
36.83 mm
Technical Specs Dimension L
49.02 mm
Technical Specs Material
Alloy 625 | Alloy 825 | Alloy C-276 | Aluminum | Brass | Carbon Steel | Monel Alloy 400 | Stainless Steel
Technical Specs Minimum Dimension D
22.35 mm
Technical Specs Standard Size
1/4 to 1 in
Technical Specs Tube Outside Diameter D
1 in
Technical Specs Width Across Flat H
1-1/2 in
