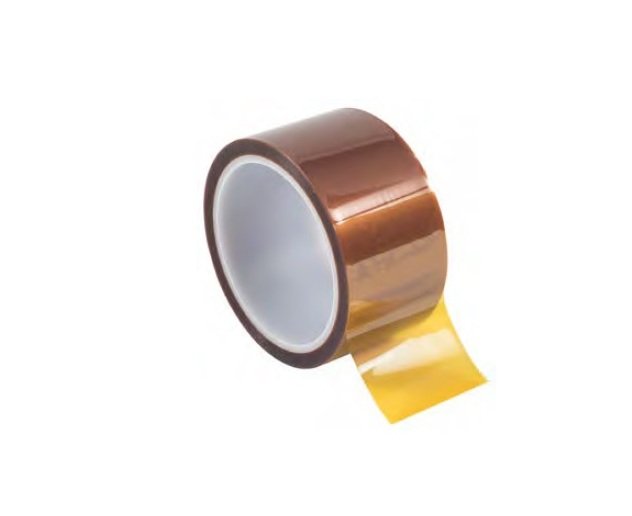

1 Mil Polyimide Tape for Electronic Insulation
1 Mil Polyimide Tape for Electronic Insulation
SKU:POL-8be8fb
The KPT-0437 1 Mil Polyimide Tape offers high-temp insulation with excellent dielectric strength & chemical resistance for PCB, automotive, and aerospace applications.
Regular price
$19.99
Regular price
Sale price
$19.99
Unit price
per
Initiate Order
1 Mil Polyimide Tape for Electronic Insulation
$19.99
Quantity: 1
Claim Your Seller Account
1 Mil Polyimide Tape for Electronic Insulation
$19.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The KPT-0437 1 Mil Polyimide Tape is a versatile solution designed for use in Printed Circuit Board (PCB) production, automotive, and aerospace industries. This tape features a 1 Mil polyimide carrier with a 1.5 Mil silicone adhesive, providing excellent dielectric strength, chemical resistance, and temperature resistance up to 500°F continuous and over 700°F for short exposures. It is flame retardant, very conformable for uneven surfaces, and suitable for applications such as powder coating, E-coating, wave soldering, hot air leveling, and circuit board insulation. Manufactured to meet Class H requirements, this tape ensures reliable performance in demanding environments.
Product Specifications
Specifications Case Quantity
72
Specifications Construction
1 Mil Polyimide Carrier | 1.5 Mil Silicone Adhesive | 2.5 Mil Total Thickness
Specifications Features
Temperature Rating 500 °F/260 °C Meets Class H Requirements, Flame Retardant Excellent Dielectric Strength and Chemical Resistance Very Conformable for uneven Surfaces or Irregular Shapes Used in Powder Coating, E-Coating, Wave Soldering, Hot Air Leveling, and Circuit Board Insulation
Specifications Roll Length
36 yd
Specifications Width
0.437 Inch | 1.11 mm
