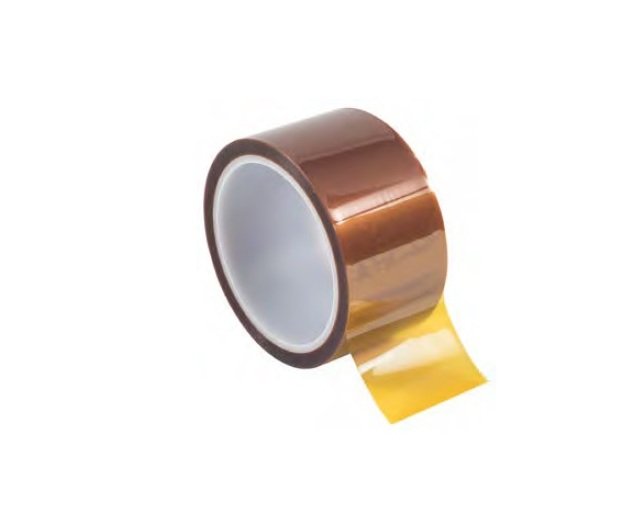

1 Mil Polyimide Tape for PCB and Aerospace, 0.375 Inch Width

Name: 1 Mil Polyimide Tape for PCB and Aerospace, 0.375 Inch Width
Brand: Custom Fabricating & Supplies
SKU: POL-c5ef39
Price: 24.99 USD
Availability: OutOfStock

SKU:POL-c5ef39

High-performance 1 Mil Polyimide Tape for PCB, automotive, and aerospace industries. Temperature rating up to 500°F, residue-free removal, and excellent dielectric strength.

$24.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The KPT-0375 1 Mil Polyimide Tape is a high-performance tape specifically designed for applications in Printed Circuit Board (PCB) production, automotive, and aerospace industries. With a 1 mil polyimide carrier, 1.5 mil silicone adhesive, and 2.5 mil total thickness, this tape offers exceptional physical, mechanical, and electrical properties. It can withstand temperatures up to 500°F continuously for 1 hour, with short exposures over 700°F, making it ideal for extreme environments. The silicone adhesive leaves no residue upon removal, ensuring clean and efficient usage. This tape is very conformable for uneven surfaces or irregular shapes, making it versatile for various applications including powder coating, E-coating, wave soldering, hot air leveling, and circuit board insulation.

Product Specifications

Specifications Case Quantity

Specifications Construction

1 Mil Polyimide Carrier | 1.5 Mil Silicone Adhesive | 2.5 Mil Total Thickness

Specifications Features

Temperature Rating 500 Â°F/260 Â°C Meets Class H Requirements, Flame Retardant Excellent Dielectric Strength and Chemical Resistance Very Conformable for uneven Surfaces or Irregular Shapes Used in Powder Coating, E-Coating, Wave Soldering, Hot Air Leveling, and Circuit Board Insulation

Specifications Roll Length

36 yd

Specifications Width

0.375 Inch | 9.52 mm

1 Mil Polyimide Tape for PCB and Aerospace, 0.375 Inch Width
