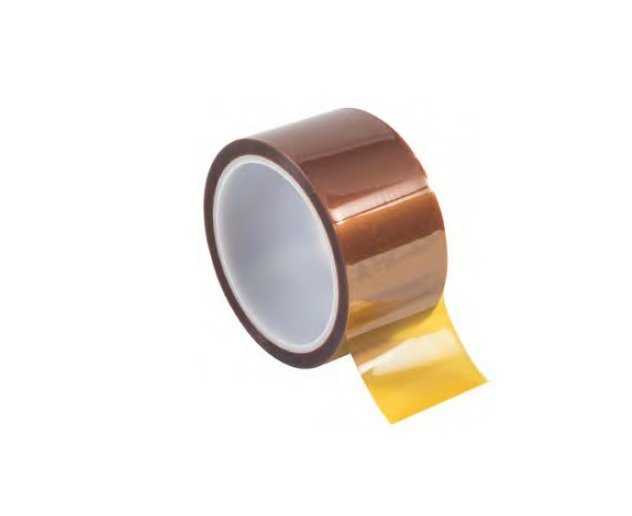

1 Mil Polyimide Tape for PCB & Automotive Industries
1 Mil Polyimide Tape for PCB & Automotive Industries
SKU:POL-c6a160
High-performance 1 Mil Polyimide Tape for PCB & Automotive Industries. Withstands extreme temperatures, residue-free removal. Meets Class H requirements.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
1 Mil Polyimide Tape for PCB & Automotive Industries
$29.99
Quantity: 1
Claim Your Seller Account
1 Mil Polyimide Tape for PCB & Automotive Industries
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The KPT-0937 1 Mil Polyimide Tape is a versatile solution for various industries, including Printed Circuit Board (PCB) production, automotive, and aerospace sectors. With exceptional physical, mechanical, and electrical properties, this tape can withstand temperatures up to 500°F continuously for 1 hour and short exposures over 700°F. Manufactured from commercial grade polyimide film with a special silicone adhesive that leaves no residue upon removal, it offers superior performance and reliability. Its construction includes a 1 mil polyimide carrier, 1.5 mil silicone adhesive, resulting in a total thickness of 2.5 mil. This tape is designed to meet Class H requirements, is flame retardant, exhibits excellent dielectric strength, chemical resistance, and is highly conformable for uneven surfaces or irregular shapes. Ideal for applications like Powder Coating, E-Coating, Wave Soldering, Hot Air Leveling, and Circuit Board Insulation.
Product Specifications
Specifications Case Quantity
36
Specifications Construction
1 Mil Polyimide Carrier | 1.5 Mil Silicone Adhesive | 2.5 Mil Total Thickness
Specifications Features
Temperature Rating 500 °F/260 °C Meets Class H Requirements, Flame Retardant Excellent Dielectric Strength and Chemical Resistance Very Conformable for uneven Surfaces or Irregular Shapes Used in Powder Coating, E-Coating, Wave Soldering, Hot Air Leveling, and Circuit Board Insulation
Specifications Roll Length
36 yd
Specifications Width
0.937 Inch | 23.81 mm
