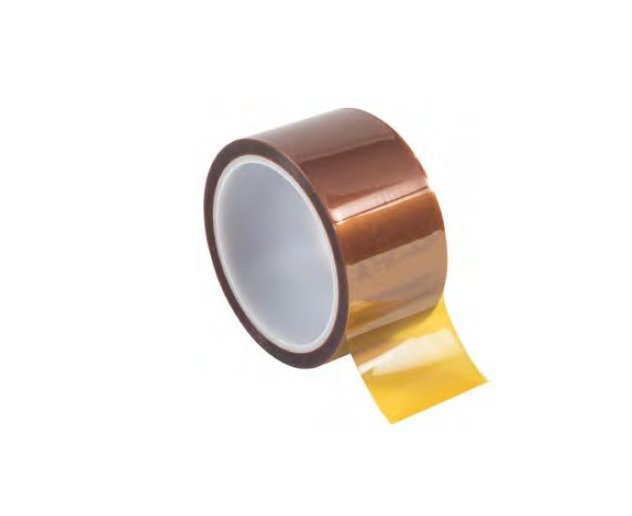

1 Mil Polyimide Tape - High Temperature Silicone Adhesive - 0.687 Inch Width

Name: 1 Mil Polyimide Tape - High Temperature Silicone Adhesive - 0.687 Inch Width
Brand: Custom Fabricating & Supplies
SKU: POL-d8a673
Price: 29.99 USD
Availability: OutOfStock

SKU:POL-d8a673

High-temp polyimide tape with silicone adhesive for PCB production, automotive, aerospace. Residue-free, flame-retardant, excellent dielectric strength.

$29.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The KPT-0687 1 Mil Polyimide Tape is a versatile product widely used in Printed Circuit Board (PCB) production, automotive, and aerospace industries. With a temperature rating of up to 500°F continuous and over 700°F for short exposures, this tape ensures exceptional physical, mechanical, and electrical properties. Manufactured from commercial-grade polyimide film and a special silicone adhesive, it leaves no residue upon removal. Ideal for applications like powder coating, E-coating, wave soldering, hot air leveling, and circuit board insulation, this tape offers excellent dielectric strength, chemical resistance, and conformability for uneven surfaces or irregular shapes.

Product Specifications

Specifications Case Quantity

Specifications Construction

1 Mil Polyimide Carrier | 1.5 Mil Silicone Adhesive | 2.5 Mil Total Thickness

Specifications Features

Temperature Rating 500 Â°F/260 Â°C Meets Class H Requirements, Flame Retardant Excellent Dielectric Strength and Chemical Resistance Very Conformable for uneven Surfaces or Irregular Shapes Used in Powder Coating, E-Coating, Wave Soldering, Hot Air Leveling, and Circuit Board Insulation

Specifications Roll Length

36 yd

Specifications Width

0.687 Inch | 17.46 mm

1 Mil Polyimide Tape - High Temperature Silicone Adhesive - 0.687 Inch Width
