1" NMEF Non-Metallic Mechanical Protection Tubing
1" NMEF Non-Metallic Mechanical Protection Tubing
SKU:LIQ-9b39d1
Durable 1" NMEF Non-Metallic Tubing - Crush resistant, chemical & flame retardant, ideal for industrial use.
Regular price
$129.99
Regular price
Sale price
$129.99
Unit price
per
Initiate Order
1" NMEF Non-Metallic Mechanical Protection Tubing
$129.99
Quantity: 1
Claim Your Seller Account
1" NMEF Non-Metallic Mechanical Protection Tubing
$129.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

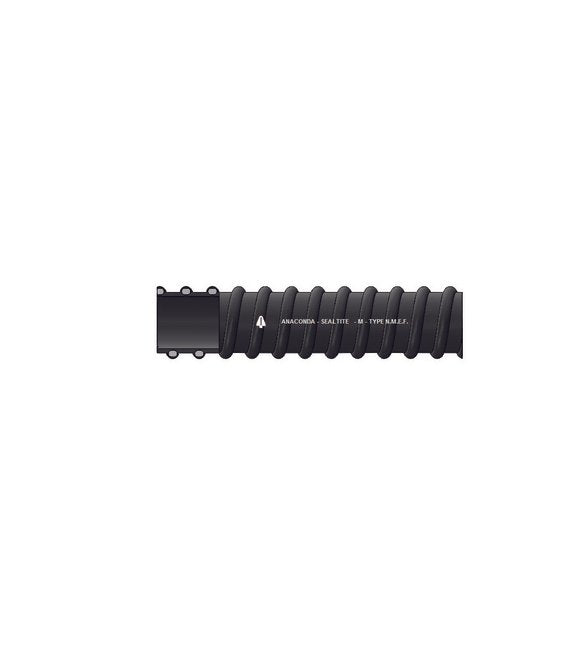

The 1" NMEF Non-Metallic Mechanical Protection Tubing is a reliable solution featuring rigid, non-metallic reinforcement embedded in flexible PVC for superior crush and corrosion resistance. Made of durable PVC, it is sunlight resistant, flame retardant, and withstands heat, oil, and chemical breakdown. With certifications including CSA and RoHS WEEE compliance, this tubing is ideal for OEM machine building and industrial applications requiring tight bend radii.
Product Specifications
Application
OEM machine buildingIndustrial applications where tight bend radii are required.
Installation
Tubing used with fittings for non-metallic tubing Type B that comply with the requirements of C22.21 No. 227.3-05. IP 66/67 Rated when installed with approved connectors.Approved for both exposed and concealed locations. Rated for temperature ranges of -0ºF to +176ºF (-18ºC to +80ºC) Wet: +60°C; Oil 70°C. Easy to install and cuts easily.Manufactured in a full range of trade sizes from 1/4" through 2".
Specifications Color
BLACK
Specifications Connector Type
Type B
Specifications Core Material
Polyvinyl Chloride (PVC)
Specifications Electrical Trade Size
1 in
Specifications Ingress Protection Ip Rating
Ingress Protection (IP) 66/67
Specifications Inside Bend Radius
6.5 in
Specifications Inside Diameter
1.041-1.066 in
Specifications Jacket Benefits
Liquid Tight | Oil Resistant
Specifications Jacket Material
Polyvinyl Chloride (PVC)
Specifications Length
100 ft
Specifications Naed Pin
3620260
Specifications Outside Diameter
1.290-1.315 in
Specifications Standard Length Coil
100 ft
