1" NPT Nickel Plated Brass Compact Fitting - Straight Connector
1" NPT Nickel Plated Brass Compact Fitting - Straight Connector
SKU:FIT-935eef
High-quality 1" NPT Nickel Plated Brass Compact Fitting with UL, CSA, RoHS certifications. Durable design for secure connections.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
1" NPT Nickel Plated Brass Compact Fitting - Straight Connector
$24.99
Quantity: 1
Claim Your Seller Account
1" NPT Nickel Plated Brass Compact Fitting - Straight Connector
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

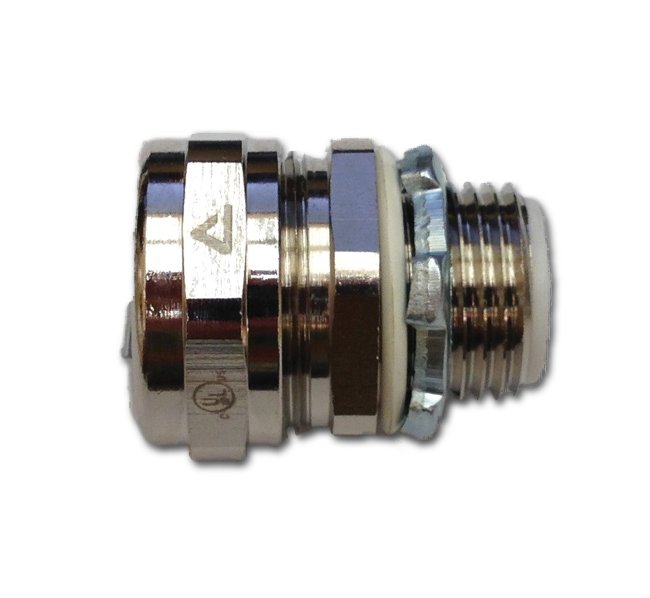

The 1" NPT Nickel Plated Brass Compact Fitting is expertly designed for durability and reliability. Made of high-quality nickel-plated brass, this fitting consists of four essential parts - counter nut, clamping ring, ferrule, and body. It includes a sealing ring and galvanized steel lock nut for secure connection to boxes. With UL LISTED, CSA CERTIFIED, and RoHS WEEE COMPLIANT certifications, this fitting meets stringent industry standards, ensuring safety and performance. Ideal for various applications, it features IP66/67 Ingress Protection and liquid-tight jacket benefits.
Product Specifications
Specifications Connector Type
Straight
Specifications Core Material
Brass

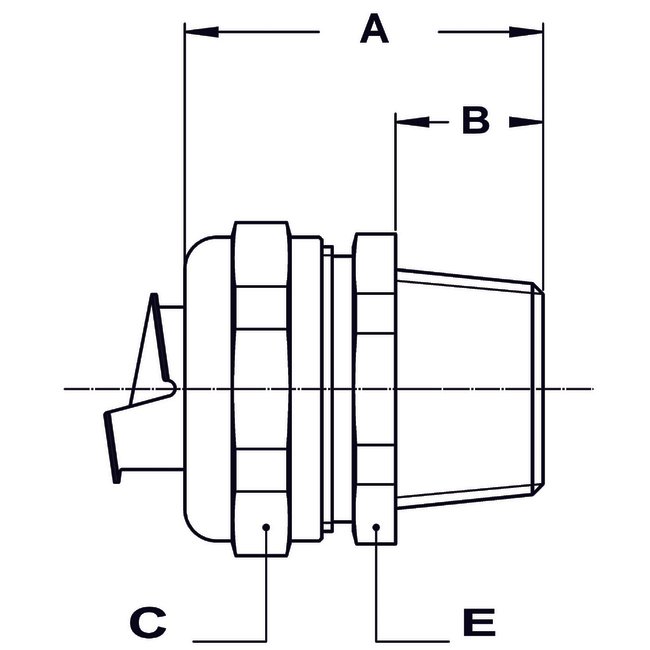

Specifications Dimension A
1.456 in
Specifications Dimension B
0.511 in
Specifications Dimension C
1.771 in
Specifications Dimension E
1.732 in
Specifications Electrical Trade Size
1 in
Specifications Ingress Protection Ip Rating
Ingress Protection (IP) 66/67
Specifications Jacket Benefits
Liquid Tight
Specifications Thread Type
NPT
Specifications Type
Compact Nickel Plated Brass
