1" PVC 3-Way True Union Ball Valve with FPM O-Rings, Flanged End - TW Series
1" PVC 3-Way True Union Ball Valve with FPM O-Rings, Flanged End - TW Series
SKU:TRU-9cd8ca
Versatile 1" PVC 3-Way True Union Ball Valve with FPM O-Rings & Flanged End - TW Series. Ensures precise fluid control.
Regular price
$39.99
Regular price
Sale price
$39.99
Unit price
per
Initiate Order
1" PVC 3-Way True Union Ball Valve with FPM O-Rings, Flanged End - TW Series
$39.99
Quantity: 1
Claim Your Seller Account
1" PVC 3-Way True Union Ball Valve with FPM O-Rings, Flanged End - TW Series
$39.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The 1" PVC 3-Way True Union Ball Valve from the TW Series is designed for versatile flow configurations with precision. Constructed with durable PVC and FPM o-rings, it ensures reliable performance in diverse conditions. Featuring flanged end connections, this valve is ideal for applications requiring secure and efficient fluid control. With dimensions meeting industry standards and a Cv Factor of 10, this valve delivers consistent and efficient operation for a range of institutional needs.
Ready to Grow Without Cash Flow Constraints?

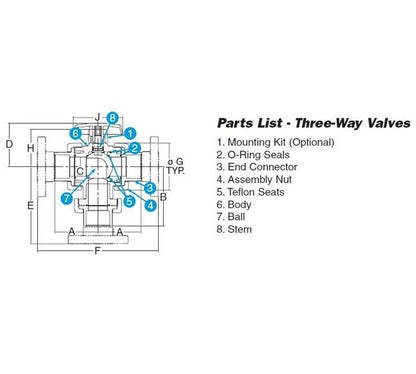

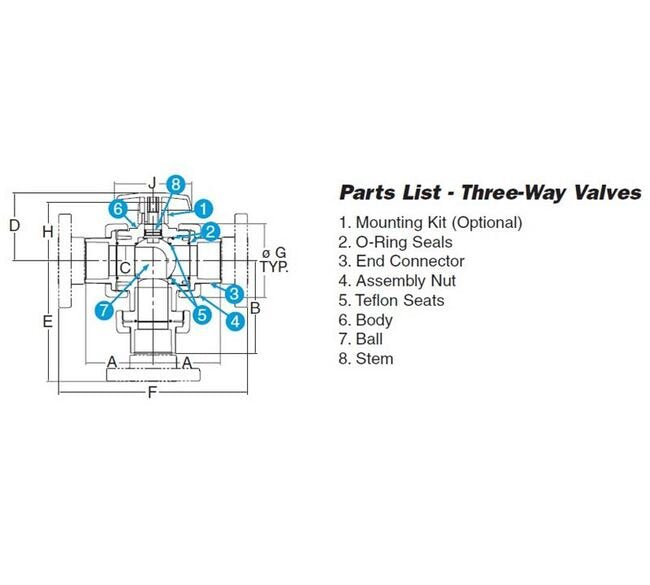

Product Specifications
Specifications A
2.99 in | 75.82 mm
Specifications B
4.14 in | 105.16 mm
Specifications Body Material
PVC
Specifications C
1.00 in | 25.40 mm
Specifications Cv Factor
10
Specifications D
3.21 in | 81.53 mm
Specifications E
4.77 in | 121.16 mm
Specifications End Connection
Flanged
Specifications F
8.50 in | 215.90 mm
Specifications G
3.00 in | 76.20 mm
Specifications H
3.08 in | 78.23 mm
Specifications J
4.00 in | 101.60 mm
Specifications Seals
FPM
Specifications Size
1"
