1" R1 Style High-Pressure Check Valve
1" R1 Style High-Pressure Check Valve
SKU:U1A-70efba
Premium 1" R1 Style High-Pressure Check Valve with 10,000 psig capacity, metal-to-metal seal, and adjustable spring. CE PED and ISO 9001 certified.
Regular price
$129.99
Regular price
Sale price
$129.99
Unit price
per
Initiate Order
1" R1 Style High-Pressure Check Valve
$129.99
Quantity: 1
Claim Your Seller Account
1" R1 Style High-Pressure Check Valve
$129.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

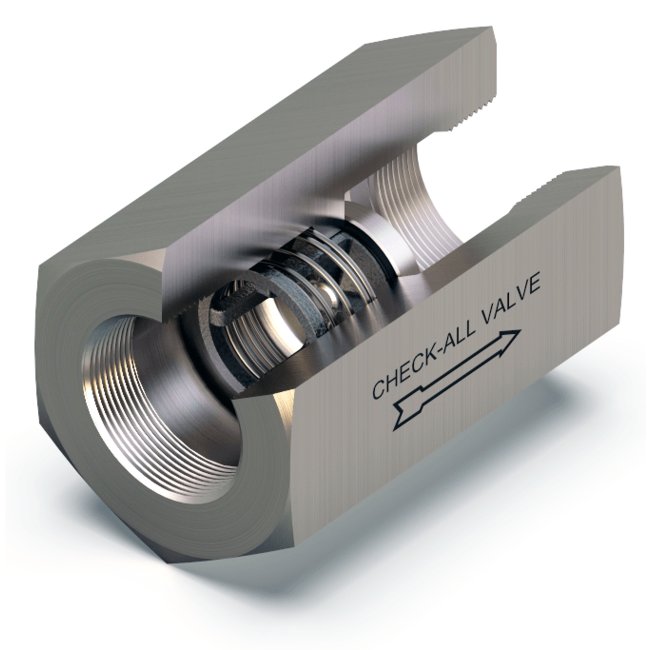

Experience unparalleled reliability with the 1 inch R1 Style Universal High-Pressure Check Valve. Crafted from premium 316 Stainless Steel, this valve withstands extreme pressures up to 10,000 psig. The metal-to-metal seat ensures a tight seal while the adjustable spring allows for precise cracking pressure settings. Certified to European Conformity (CE) PED 2014/68/EU and ISO 9001 standards, this valve is ideal for high-pressure applications and can optionally meet B16.34 certification requirements. Made in the USA.
Product Specifications
Additional Information
The Wafer Insert check valve can also be used as a low-pressure relief valve or vacuum breaker by simply using the desired spring settings.
Note
Many valves in this series can be supplied with B16.34 certification. Consult the factory for more information.Made in USA.
Specifications Body Material
316 Stainless Steel = SS | Alloy 20 = A2 | Alloy B = HB | Alloy C-276 = HC | Carbon Steel = CS | Monel® 400 or Alloy R405 = MO | Titanium = TI
Specifications Body Material Availability
316 Stainless Steel (SS) - Standard | Alloy 20 (A2) - Semi-Standard | Alloy B (HB) - Contact the factory for these or other materials | Alloy C-276 (HC) - Semi-Standard | Carbon Steel (CS) - Standard | Monel® 400 or Alloy R405 - Semi-Standard | Titanium (TI) - Contact the factory for these or other materials
Specifications Certifications
European Conformity (CE) PED 2014/68/EU Complaint | International Organization for Standardization (ISO 9001) Certified
Specifications Nominal Pipe Size
1 in
Specifications Non Shock Pressure Rating At 100 Degree Fahrenhei
10,000 psig
Specifications Note For Material
Listed above are the most common material selections. Please contact the factory for additional options.
Specifications Seat Material
"Metal-to-Metal" = MT
Specifications Size Code
H
Specifications Special Options
T = FEP Encapsulated Spring (Contact the factory for more options)
Specifications Spring Material
17-7PH Stainless Steel = PH | 316 Stainless Steel = SS | Alloy B = HB | Alloy C-276 = HC | Inconel® X750 or Alloy X750 = IX | Monel® 400 = MO | Titanium = TI
Specifications Standard Cracking Pressure
1.50 psi
Specifications Valve Style
International Organization for Standardization (ISO) 7 R Threads = R1
