1" Stainless Steel Pwr-Flo(TM) AODD Pump with Hytrel(R) Diaphragm
1" Stainless Steel Pwr-Flo(TM) AODD Pump with Hytrel(R) Diaphragm
SKU:MAN-a87a92
Power through solids and slurries with the 1" Stainless Steel Pwr-Flo(TM) AODD Pump. Reliable, efficient, and durable.
Regular price
$899.99
Regular price
Sale price
$899.99
Unit price
per
Initiate Order
1" Stainless Steel Pwr-Flo(TM) AODD Pump with Hytrel(R) Diaphragm
$899.99
Quantity: 1
Claim Your Seller Account
1" Stainless Steel Pwr-Flo(TM) AODD Pump with Hytrel(R) Diaphragm
$899.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The 1" Stainless Steel Pwr-Flo(TM) AODD Pump with Hytrel(R) Diaphragm from NOMAD PWR-FLO Pumps is a reliable solution for handling large solids and slurries. Featuring an efficient air system with an anti-stalling design, this pump ensures excellent reliability for liquid transfer applications. Made with chemically resistant materials and a stainless steel check valve seat, it meets the highest standards for durability and performance. With a max flow rate of 56 gpm, it offers unparalleled efficiency and seamless integration with existing systems.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Curves 0

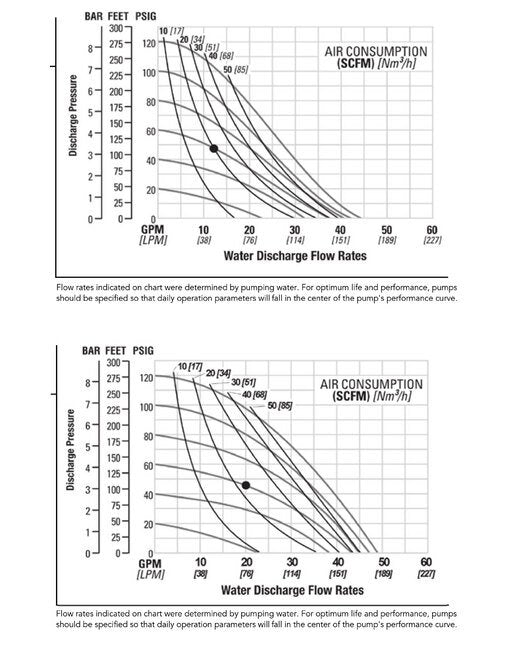

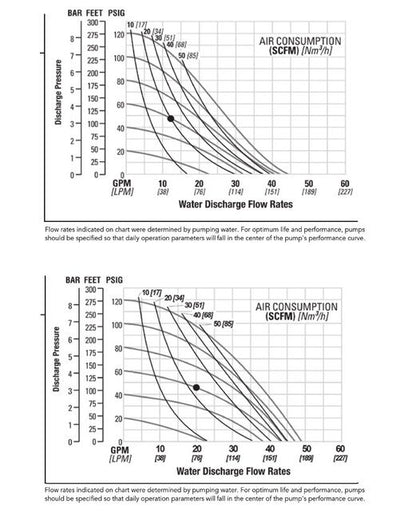

Performance Curves
Specifications 0
Drop in replacement for Wilden® AODD pumps of equivalent make and sizeAir driven double diaphragm pumps handle large solids and slurriesPWR-FLO⢠asymmetrical spool design (ASD) features an efficient air systemThe anti-stalling design also provides excellent reliability in on/off liquid transfer for filling and batching applicationsThe air valve and center section is made of chemically resistant polypropylene.
Specifications Check Valve Seat
Stainless Steel
Specifications Customs Code
Schedule B Code 8413.50.00.50
Specifications Diaphragm Material
Hytrel®
Specifications Displacement Per Cycle
0.08 gal | 0.30 lit
Specifications Elastomers
Hytrel®, Hytrel®
Specifications Fluid Inlet Size
1 in | 25 mm
Specifications Fluid Outlet Size
1 BSP in | 25 BSP mm
Specifications Height
14 Inch | 14 in | 342.90 mm
Specifications Length
15 Inch | 15 in | 0.3734 m | 373.38 mm
Specifications Max Flow Rate
56 gpm | 211.98 lpm
Specifications Model
NPNF250/SAAA/FG/FG/SFG/B/B/X
Specifications Non Wetted Material
Aluminum
Specifications Similar Or Comparable To Brand
Nomad®
Specifications Similar Or Comparable To Part
250-17464
Specifications Solids Handling
0.125 in | 3 mm
Specifications Wetted Moc
Stainless Steel
Specifications Width
11 Inch | 11 in | 0.2870 m | 287.02 mm
