1" Stainless Steel Tri-Clamp PWR-FLO Pump

1" Stainless Steel Tri-Clamp PWR-FLO Pump

MAN-2f4514

Durable 1" Stainless Steel AODD Pump with Santoprene Diaphragm for reliable industrial fluid handling.

$799.99
$799.99
Sale

Initiate Order

1" Stainless Steel Tri-Clamp PWR-FLO Pump

1" Stainless Steel Tri-Clamp PWR-FLO Pump

$799.99

Quantity: 1

Claim Your Seller Account

1" Stainless Steel Tri-Clamp PWR-FLO Pump

1" Stainless Steel Tri-Clamp PWR-FLO Pump

$799.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details
The 1" Tri-Clamp PWR-FLO AODD Pump with Stainless Steel construction and Santoprene diaphragm is a robust solution for industrial fluid handling. Designed as a drop-in replacement for Wilden AODD pumps, this pump excels in handling large solids and slurries. Its PWR-FLO asymmetrical spool design ensures efficient air usage, making it reliable for on/off liquid transfer tasks like filling and batching. With a maximum flow rate of 45 gpm, it offers durable performance for various industrial applications.

Ready to Grow Without Cash Flow Constraints?

Get Net 30, 60, or 90 day terms at 0% interest on any purchase

Check Your Eligibility Now
Ready to Grow Without Cash Flow Constraints?

Product Specifications

Curves 0

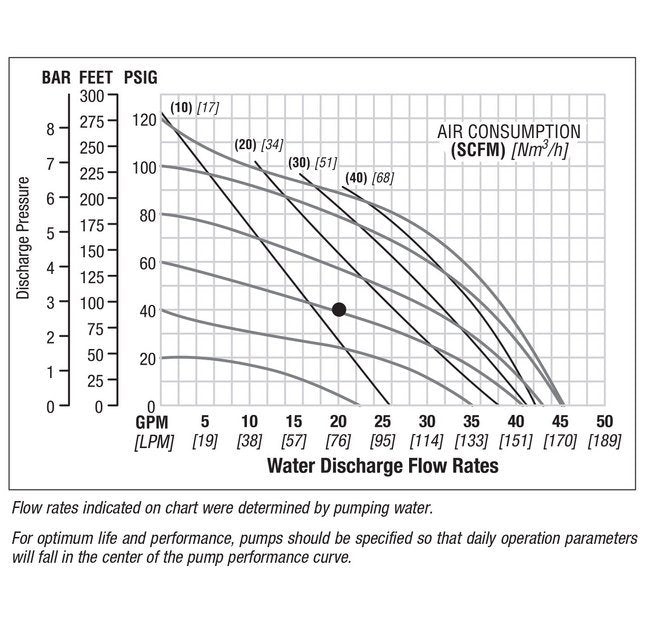

Performance Curves
Specifications 0
Drop in replacement for Wilden® AODD pumps of equivalent make and sizeAir driven double diaphragm pumps handle large solids and slurriesPWR-FLO™ asymmetrical spool design (ASD) features an efficient air systemThe anti-stalling design also provides excellent reliability in on/off liquid transfer for filling and batching applications The air valve and center section is made of chemically resistant polypropylene.
Specifications Ball Moc
Santoprene®
Specifications Check Valve Seat
Stainless Steel
Specifications Customs Code
Schedule B Code 8413.50.00.50HS Code 8413.50.00
Specifications Diaphragm Material
Santoprene® - UFI
Specifications Displacement Per Cycle
0.091 gal | 0.34 lit
Specifications Elastomers
Santoprene, Santoprene®, Santoprene®
Specifications Fluid Inlet Size
1 Tri-Clamp in | 25 Tri-Clamp mm
Specifications Fluid Outlet Size
1 Tri-Clamp in | 25 Tri-Clamp mm
Specifications Height
11 Inch | 11 in | 279.40 mm
Specifications Length
11 Inch | 11 in | 0.2794 m | 279.40 mm
Specifications Max Flow Rate
45 gpm | 170.34 lpm
Specifications Moc
Stainless Steel
Specifications Model
NPF25/SAAA/SNF/SN/SSN/TC/B/X
Specifications Similar Or Comparable To Brand
Nomad®
Specifications Similar Or Comparable To Part
25-19463
Specifications Solids Handling
0.125 in | 3 mm
Specifications Wetted Moc
Stainless Steel
Specifications Width
8 Inch | 8 in | 0.2007 m | 200.66 mm
