1" TC Style Sanitary Insert Check Valve, 3.50 psi Cracking Pressure
1" TC Style Sanitary Insert Check Valve, 3.50 psi Cracking Pressure
SKU:CBA-90e135
Compact 1" TC Style Sanitary Insert Check Valve with 3.50 psi cracking pressure, ideal for sanitary piping systems.
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
1" TC Style Sanitary Insert Check Valve, 3.50 psi Cracking Pressure
$49.99
Quantity: 1
Claim Your Seller Account
1" TC Style Sanitary Insert Check Valve, 3.50 psi Cracking Pressure
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

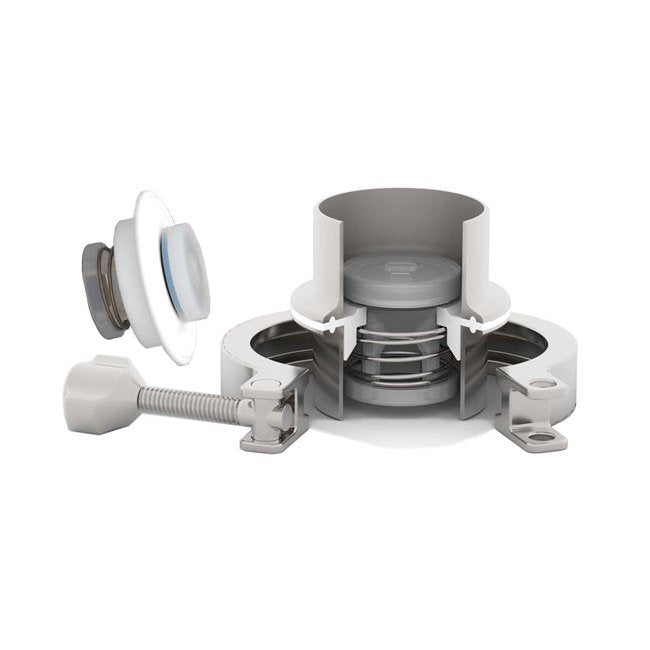

Ideal for sanitary piping systems, the 1" TC Style Sanitary Insert Check Valve offers a compact fluoropolymer design with a standard cracking pressure of 3.50 psi. This valve, fitting grooved-end clamp-type fittings, effectively replaces gaskets, saving space and costs. With versatile seat and outer seals material options for various applications, including low pressure relief and vacuum breaker functions, this valve ensures reliable performance while meeting CE and ISO 9001 certifications.
Product Specifications
Additional Information
Two different types of Sanitary Insert Valves are available. They are distinguished by the following designations in their part numbers.TC - Designates Tri-Clamp® fittings manufactured by Alfa Laval Inc., as well as Cherry-Burrell S-Line Series of fittings. CB - Designates the Cherry-Burrell Q-Line Series of fittings.PED Compliance Statement: Due to the unique "insert" design of our 3S, SC, CB, TC, SI, & UV, style check valves, they do not constitute an "identifiable pressure bearing housing" as defined in PED Guideline 1/8. These styles must be installed into either ferrules or fittings to create a pressure bearing housing. Instead, they are classified as “components of pressure equipment” as defined in PED Guideline 1/8. As a result, these valves can be sold in the European Community and no CE Mark is required. In addition applications where the maximum allowed operating pressure is 0.5 bar (7.2 psi) or less, do not fall under the PED, regardless of the valve style.
Note
Sanitary Insert Valve types TC and CB are not interchangeable!USP Class VI O-rings can be supplied with certification.Made in USA.
Specifications Body Material
Polytetrafluoroethylene (PTFE) = TF
Specifications Certifications
European Conformity (CE) Non-PED Statement | International Organization for Standardization (ISO 9001) Certified
Specifications Line Size
1 in
Specifications Non Shock Pressure Rating At 100 Degree Fahrenhei
55 psig
Specifications Note For Material
Listed above are the most common material selections. Please contact the factory for additional options.
Specifications Seat And Outer Seals Material
FDA Aflas® = FA | FDA Buna = FB | FDA Ethylene Propylene Diene Monomer (EPDM) = FE | FDA Fluoro-Elastomer (FKM) = FV | FDA Perfluoroelastomer = FK | Plastic to Plastic = MT (No O-ring). | USP Class VI Aflas® = UA | USP Class VI Ethylene Propylene Diene Monomer (EPDM) = UE | USP Class VI Fluoro-Elastomer (FKM) = UV | USP Class VI Silicone = US
Specifications Size Code
H
Specifications Special Options
T = FEP Encapsulated Spring (Contact the factory for more options)
Specifications Spring Material
316 Stainless Steel = SS | Alloy C-276 = HC | Inconel® X750 or Alloy X750 = IX | Monel® 400 = MO | Titanium = TI
Specifications Standard Cracking Pressure
3.50 psi
Specifications Valve Style
TC
