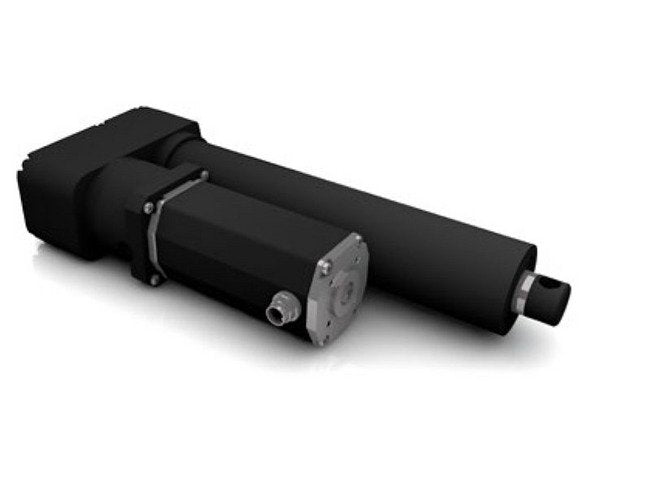

10.000 N Constant Force Electric Cylinder by Dunkermotoren
10.000 N Constant Force Electric Cylinder by Dunkermotoren
SKU:ELE-ef1834
Powerful 10.000 N Constant Force Electric Cylinder by Dunkermotoren for precise lifting needs.
Regular price
$1,599.99
Regular price
Sale price
$1,599.99
Unit price
per
Initiate Order
10.000 N Constant Force Electric Cylinder by Dunkermotoren
$1,599.99
Quantity: 1
Claim Your Seller Account
10.000 N Constant Force Electric Cylinder by Dunkermotoren
$1,599.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Experience unparalleled lifting capabilities with the 10.000 N Constant Force Electric Cylinder by Dunkermotoren. This robust electric cylinder boasts strokes of up to 700 mm, powered by a brushless DC-Servomotor BG 66x50 dPro. With features like integrated gear and brake, overload protection up to 14,000 N, and a duty cycle of 20%, this cylinder ensures high performance and reliability. Perfect for applications requiring precise positioning and high forces, it offers ease of configuration, various BUS interfaces, and alternative to pneumatic/hydraulic cylinders. Compliant with industry standards like ISO 9227:2017, Ingress Protection (IP65), and offering options for CANopen, EtherCAT, Profinet, RS485 versions, this electric cylinder is ideal for industrial and institutional use.
Product Specifications
Additional Information Additional Information
Alternative to pneumatic/hydraulic cylindersCompact and space-savingEasy configuration of up to 14 positions (IO dMove motors)Various BUS interfaces available (CO, PN, EC, EI dPro motors)
Features Features
Service interfaceCANopen version availableEtherCAT version availableProfinet version availableRS485 version availableCondition monitoringDigital labelHigh/Premium efficiencyLifetime lubricationLow temperatureHigh forceIO modeOscilloscope software availableSupply voltageAnalog inputsDigital inputsDigital outputsBlock commutationVibration resistanceProgrammableSelf-lockingPositioning
Technical Specs Ambient Temperature
-40 to +85 ºC
Technical Specs Backlash
0.6 mm
Technical Specs Brands
Dunkermotoren
Technical Specs Constant Force
10.000 N
Technical Specs Duty Cycle 85 Second S On 340 Second S Off
20 %
Technical Specs Feedback Integrated
30 cycles/rev | 4096 cycles/rev
Technical Specs Gearbox Reduction
25.8385 i
Technical Specs Maximum Traverse Speed
9 mm/s
Technical Specs Motor Type
BG 66x50 dPro
Technical Specs Nominal Current
7.5 A
Technical Specs Nominal Direct Current Dc Voltage
24 V
Technical Specs Note For Nominal Direct Current Dc Voltage
On request 12V or 48V version
Technical Specs Note For Stroke Length
500/600/700 mm - On request
Technical Specs No Load Current
2 A
Technical Specs Overload Protection
14.000 N
Technical Specs Product Availability
Standard Product
Technical Specs Protection Class
Ingress Protection (IP65)
Technical Specs Salt Spray Test International Organization For S
192 h
Technical Specs Spindle Pitch
5 mm
Technical Specs Stroke Length
100 mm | 200 mm | 300 mm | 400 mm | 500 mm | 600 mm | 700 mm
