10.0mm Threaded High Current Socket with Flange - UJMSF Series

Name: 10.0mm Threaded High Current Socket with Flange - UJMSF Series
Brand: JC CHERRY INC.
SKU: HIG-0ed6da
Price: 29.99 USD
Availability: OutOfStock

SKU:HIG-0ed6da

Enhance power connections with the UJMSF Series 10.0mm High Current Socket for reliable performance in high-voltage setups.

$29.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

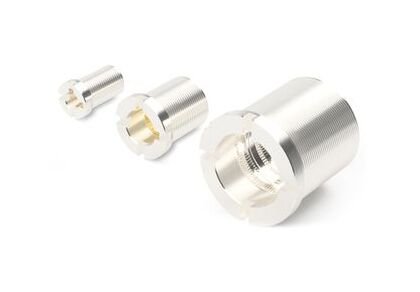

Upgrade your power connectivity with the UJMSF Series 10.0mm Plug Diameter External Thread Type High Current Socket with Flange. Specifically designed for high current and voltage applications, this socket can be seamlessly attached to bus bars, insulated panels, and round terminals. Its fine thread type ensures a secure connection, while the silver plating louver/sleeve enhances conductivity. With a maximum current rating of 180A at 25ºC, this socket is a reliable choice for demanding environments. Custom designs available upon request.

Product Specifications

Specifications Diameter D

10.2 mm

Specifications Diameter F

22.0 mm

Specifications Dimension Fl

5.5 mm

Specifications Dimension K

3.5 mm

Specifications Dimension Kl

3.5 mm

Specifications Dimension M

M18 x 1.0P mm

Specifications Dimension Ml

33.0 mm

Specifications Maximum Current Rating A At 25 Degree Celsius C T

180 A

Specifications Plating Louversleeve

Silver (Ag)

Specifications Plug Diameter

10.0 mm

Specifications Remarks

(LV2PC)

Specifications Series

UJMSW

Specifications Thread Type

Fine Thread
