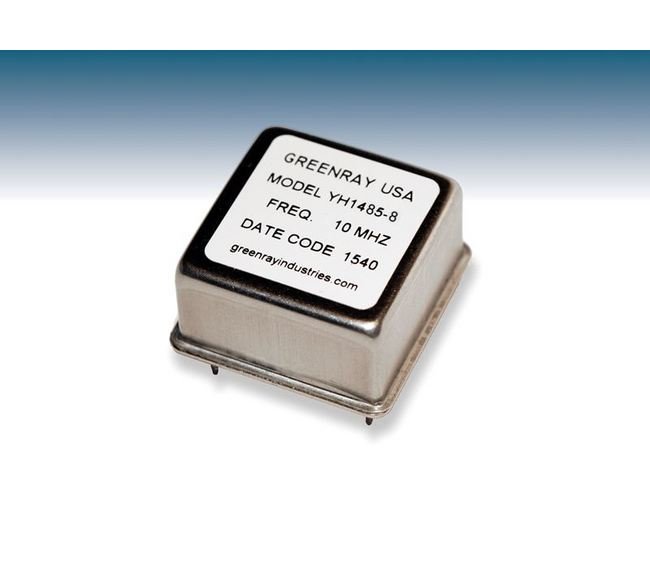

The 10-120 MHz OCXO Frequency Oven-Controlled Crystal Oscillator (OCXO) is designed for ultra-low phase noise and tight stability requirements in RF and microwave applications. With a sinewave output signal at +10 dBm minimum, this oscillator ensures reliable performance with harmonics at -30 dBc and spurious signals at -80 dBc. Featuring an initial accuracy within ±0.25 ppm at +25°C and +2.5 VDC EFC, this OCXO meets stringent frequency control demands. Its robust design includes aging characteristics of <1 x 10-7 for 1 year at 10 MHz, making it ideal for long-term operations. The product also offers various temperature stability options to suit different environmental conditions, ensuring consistent performance across temperature ranges.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Environmental And Mechanical Specifications Shock
Per MIL-STD-202, Method 213, Condition C
Environmental And Mechanical Specifications Vibration
Per MIL-STD-202, Method 204, Condition A | Per MIL-STD-810, Method 514, Proc 1
Phase Noise Performance 100 Hertz Hz Frequency Offset
-130 dBc/Hz at 100 MHz | -155 dBc/Hz at 10 MHz
Phase Noise Performance 100 Kilohertz Khz Frequency Offset
-175 dBc/Hz at 100 MHz | -176 dBc/Hz at 10 MHz
Phase Noise Performance 10 Hertz Hz Frequency Offset
-100 dBc/Hz at 100 MHz | -130 dBc/Hz at 10 MHz
Phase Noise Performance 10 Kilohertz Khz Frequency Offset
-170 dBc/Hz at 100 MHz | -173 dBc/Hz at 10 MHz
Phase Noise Performance 1 Kilohertz Khz Frequency Offset
-157 dBc/Hz at 100 MHz | -165 dBc/Hz at 10 MHz
Phase Noise Performance 1 Mhz Offset
-178 dBc/Hz at 100 MHz | -180 dBc/Hz at 10 MHz
Phase Noise Performance Note For Phase Noise
Typical at +25 ºC , Static Condtions
Specifications Aging For 10 Years At 100 Mhz
2.0 ppm
Specifications Aging For 10 Years At 10 Mhz
0.5 ppm
Specifications Aging For 1 Year At 100 Mhz
<5 x 10-7
Specifications Aging For 1 Year At 10 Mhz
<1 x 10-7
Specifications Available Lg Option Acceleration Sensitivity
â¤5 x 10-10 /g
Specifications Frequency Versus Load
±5 x 10-9 for a 10% Change
Specifications Frequency Versus Supply
±5 x 10-9 for a 5% Change
Specifications Harmonics
-30 dBc
Specifications Initial Accuracy
Within ±0.25 ppm
Specifications Input Direct Current Dc Voltage
+12 V | +15 V
Specifications Input Power
Idle - 1.5 W Typical at +25 ºC | Warmup - <5 W for 5 minutes
Specifications Maximum Frequency
120 MHz
Specifications Minimum Frequency
10 MHz
Specifications Note For Acceleration Sensitivity
Worst axis
Specifications Note For Accuracy
at +25 ºC and +2.5 VDC EFC
Specifications Note For Frequency Adjustment
0 to +5 V, center at +2.5 VDC
Specifications Ordering Example
YH1485-T17-12.0-LG-TH-10.0 MHz(Series-Stability-Input V-GSense-Package-Frequency)
Specifications Output
+10 dBm minimum into 50 ohms | Sinewave

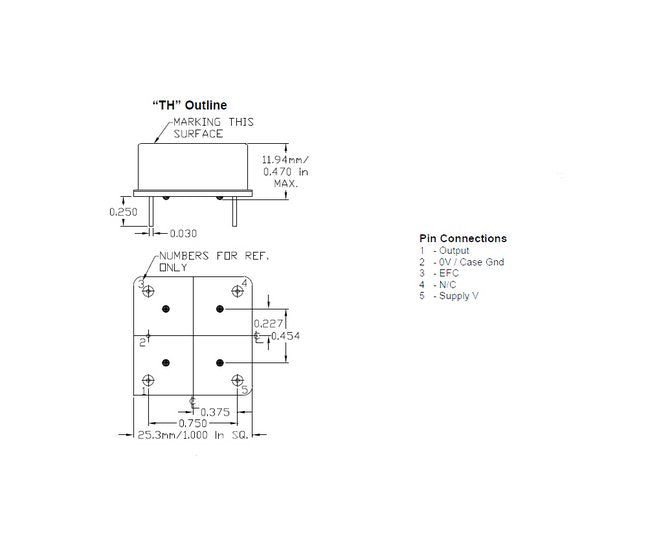

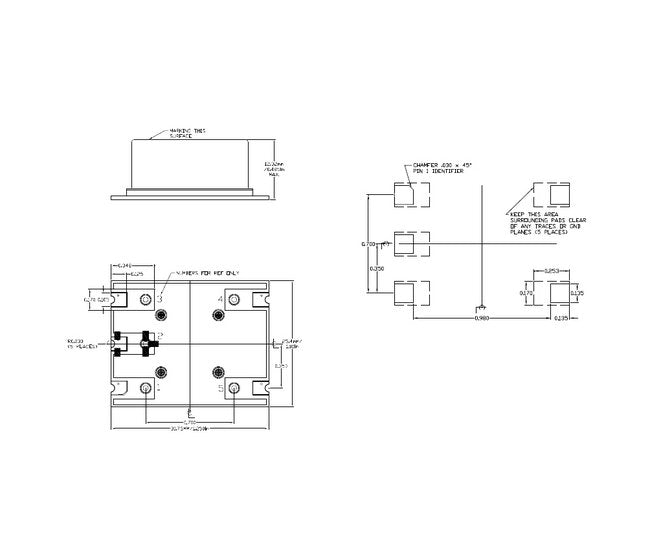

Specifications Pin Configuration
1 - Output | 2 - 0 V and Case Gnd | 3 - EFC | 4 - N/C | 5 - Supply Voltage
Specifications Positive Slope Frequency Adjust
±0.75 ppm
Specifications Spurious
-80 dBc
Specifications Standard Sd Option Acceleration Sensitivity
â¤1 x 10-9/g /g
Specifications Warm Up Time
Within 1 x 10-7 in 5 minutes
Temperature Stability Option N37 100 Mhz
Temperature Range: -20 to +70 ºC | Tolerance: ±3 x 10-7
Temperature Stability Option N58 10 Mhz
Temperature Range: -20 to +70 ºC | Tolerance: ±5 x 10-8
Temperature Stability Option T17 10 Mhz
Temperature Range: -45 to +85 ºC | Tolerance: ±1 x 10-7
Temperature Stability Option T57 100 Mhz
Temperature Range: -40 to +85 ºC | Tolerance: ±5 x 10-7
