10.30mm UM12 Grade Carbide Hole Rod
10.30mm UM12 Grade Carbide Hole Rod
SKU:SOL-0a9bce
High-precision 10.30mm UM12 Grade Carbide Hole Rod for industrial applications. Superior durability and accuracy with coolant hole.
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
10.30mm UM12 Grade Carbide Hole Rod
$49.99
Quantity: 1
Claim Your Seller Account
10.30mm UM12 Grade Carbide Hole Rod
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

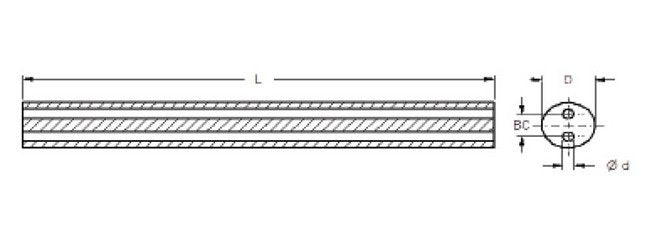

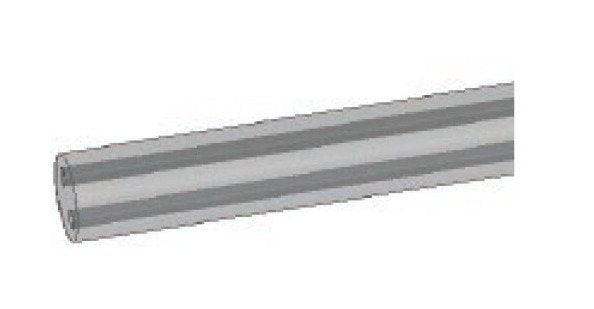

The 10.30mm UM12 Grade Carbide Hole Rod is a precision-engineered unground rod designed for industrial applications. With a diameter tolerance of +0.3mm | 0.5mm and a length of 330mm (+5mm | 0mm tolerance), this rod offers exceptional durability and accuracy. The 1.40mm hole diameter with a tolerance of ±0.15mm ensures seamless coolant flow. Manufactured with UM12 carbide grade by Ultra-Met®, this rod guarantees superior performance and longevity. Ideal for machining operations requiring high precision and reliability.
Product Specifications
Classifications Between Centers Bc Diameter
5.0 mm
Classifications Between Centers Bc Diameter Tolerance
0/-0.30 mm
Classifications Brands
Ultra-Met®
Classifications Carbide Grade
UM12
Classifications Diameter
10.30 mm
Classifications Diameter Tolerance
+0.3 mm | 0.5 mm
Classifications Finish
Unground
Classifications Hole D
1.40 mm
Classifications Hole D Tolerance
0.15 mm
Classifications Length
330 mm
Classifications Length Tolerance
+5 mm | 0 mm
Classifications Material
Carbide
Classifications Note
All inventory subject to prior sales.
Classifications Shipping Weight
0.419143489 Kilogram
