#10-32 Thread EIA Rail Cage Nut - All Electronics Hardware

Name: #10-32 Thread EIA Rail Cage Nut - All Electronics Hardware
Brand: All Electronics Hardware
SKU: IND-c03af2
Price: 12.99 USD
Availability: OutOfStock

SKU:IND-c03af2

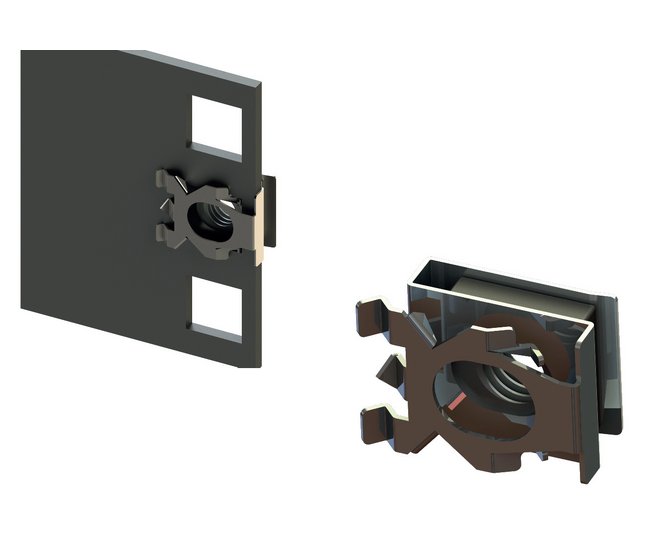

High-quality #10-32 Thread Cage Nut for secure and tool-less installation on EIA Rail systems, with built-in grounding tabs.

$12.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The #10-32 Thread Size EIA Rail Cage Nut by All Electronics Hardware is a reliable and durable solution for industrial applications. Constructed with high-quality materials, the cage is made of spring stainless steel with a 0.040mm thickness and 510 HRB hardness, while the nut is die-cast zinc with a clear zinc plated finish. Featuring tool-less installation and floating nut design, this product is designed for EIA Rail thickness ranging from 2.0mm to 3.0mm. With built-in grounding tabs, this cage nut ensures secure mounting and optimal electrical grounding, meeting stringent industry standards for performance and reliability.

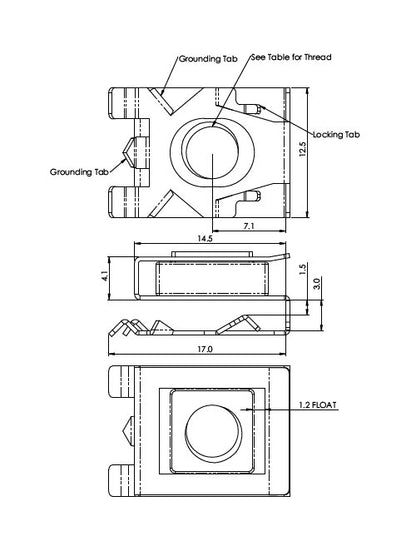

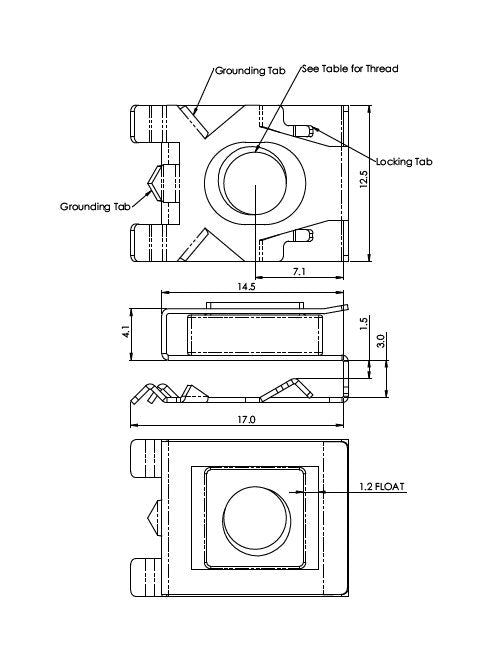

Product Specifications

Features

Tool-Less InstallationFloating NutGrounding Tabs Built InFor EIA Rail Thickness 2.0 mm-3.0 mm

Specifications Finish

Cage - Passivated | Nut - Clear Zinc Plated

Specifications Material

Cage - Spring Stainless Steel. 0.040 mm Thick 510 HRB Hardness | Nut - Die Cast Zinc

Specifications Thread Size

#10-32

#10-32 Thread EIA Rail Cage Nut - All Electronics Hardware
