10.5mm Open End CSK Rivet Nut, M4 Thread Size - P-Series

Name: 10.5mm Open End CSK Rivet Nut, M4 Thread Size - P-Series
Brand: Ornit USA
SKU: PSE-f5ce58
Price: 12.99 USD
Availability: OutOfStock

SKU:PSE-f5ce58

High-quality 10.5mm Open End CSK Rivet Nut, M4 Thread - Durable steel with zinc finish, precise dimensions, versatile options.

$12.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The P-Series 10.5mm Open End Countersunk Head (CSK) Rivet Nut offers exceptional durability and reliability, making it ideal for a wide range of applications. Made from high-quality steel with a yellow zinc plated finish, this rivet nut ensures long-lasting performance. With a thread size of M4 and dimensions specifically designed for precise installations, it provides a secure grip range of 0.5mm to 1.5mm. Additionally, options for stainless steel and aluminum materials are available, catering to various project requirements. Serration style variants add versatility to meet specific needs.

Product Specifications

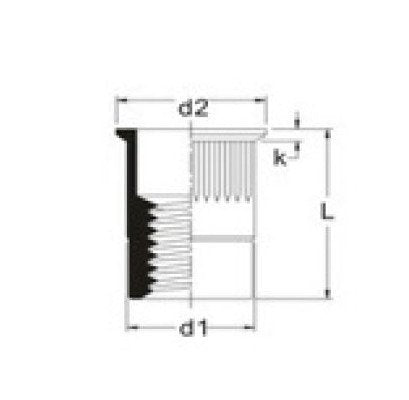

Dimensions Dimension D1

6.0 mm

Dimensions Dimension D2

7.0 mm

Dimensions Dimension K

0.5 mm

Dimensions Dimension L

10.5 mm

Dimensions Hole Size

6.1 mm

Dimensions Maximum Grip Range

1.5 mm

Dimensions Minimum Grip Range

0.5 mm

Note Note

Stainless Steel & Aluminum are available. Serration style is available.

Technical Specs Brands

Ornit

Technical Specs Finish

Yellow Zinc Plated

Technical Specs Head Style

Countersunk Head (CSK)

Technical Specs Material

Steel

Technical Specs Rivet Type

Open End

Technical Specs Thread Size

10.5mm Open End CSK Rivet Nut, M4 Thread Size - P-Series
