10.9 psig Threaded In-Line Check Valve

10.9 psig Threaded In-Line Check Valve

INL-754c32

Versatile 10.9 psig Threaded In-Line Check Valve with spring-assisted closure and high-quality materials. Suitable for various applications.

$69.99
$69.99
Sale

Initiate Order

10.9 psig Threaded In-Line Check Valve

10.9 psig Threaded In-Line Check Valve

$69.99

Quantity: 1

Claim Your Seller Account

10.9 psig Threaded In-Line Check Valve

10.9 psig Threaded In-Line Check Valve

$69.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

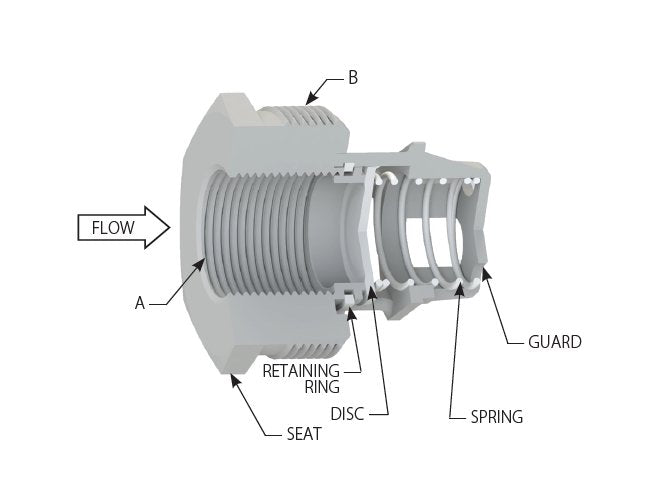

The 10.9 psig Threaded In-Line Check Valve is part of the Restrictor series, offering a versatile, spring-assisted design suitable for applications requiring higher cracking pressures. With cracking pressures ranging from 2 to 40 psi, this valve ensures reliable performance for various fluids and gases under different pressure and temperature conditions. Constructed with high-quality materials like 316 SS disc, 303 SS seat, and spring-assisted closure, it provides a tight shut-off, easy maintenance, and can be installed horizontally or vertically. Ideal for applications in autoclaves, chemical lines, compressor discharge, and more.

Ready to Grow Without Cash Flow Constraints?

Get Net 30, 60, or 90 day terms at 0% interest on any purchase

Check Your Eligibility Now
Ready to Grow Without Cash Flow Constraints?

Product Specifications

Application 0
Autoclaves | Boiler Feed & Discharge | Chemical Lines | Compressor Discharge | Condensate Lines | Cookers | Cooling Towers | Crude & Refined Product Lines | Cryogenics | Digester | Evaporators | Fly Ash System | Generator Inlet & Discharge | Hydraulic Lines | Metering Pumps | Mine Dewatering | Nitrogen Purge | Process Lines | Pump Discharge | Refrigeration | Steam Lines | Vacuum Breaker | Water Lines | Water Treatment
Available Soft Seat Materials Available Soft Seat Materials
Buna-N (-70 to 250ºF) | EPDM (-75 to 300ºF) | TFE®-Viton® (-40 to 400ºF) | Viton® (-40 to 400ºF) | Zelon® (37 to 470ºF)
Codes And Standards Ansi
B1.20.1
Codes And Standards Astm
303 SS not acceptable for CRN
Codes And Standards Mss
SP-25
Features 0
Higher cracking pressures (2 to 40 psi)1/4" to 2 1/2" Line size450 to 2500 CWPThreaded endsStainless Steel ConstructionSpring-assisted silent closingHorizontal or vertical installationTight shut-off - lapped disc & seatEasy maintenanceVersatile
Materials Of Construction Disc
316 SS
Materials Of Construction Guard
303 SS
Materials Of Construction Retaining Ring
316 SS
Materials Of Construction Seat
303 SS
Materials Of Construction Spring
302 SS
Options 0
Soft seat
Specifications Approx Net Weight Each
0.38 lb | 0.2 kg
Specifications Cold Working Pressure
0 psig | 2500 psig | 0 barg | 172 barg
Specifications Ends
NPT (Threaded)
Specifications Friction Loss Feet Of Pipe
7
Specifications Friction Loss Meter Of Pipe
2.1
Specifications Outside Thread Mnpt B
1.00 in
Specifications Series
Restrictor Check
Specifications Valve Cracking Pressure
10.9 psi | 0.752 bar
Specifications Valve Cracking Pressure Tolerance
±10%
