10" ASME Class 600 Paddle Spacer for Line Blinds & Bleed Rings
10" ASME Class 600 Paddle Spacer for Line Blinds & Bleed Rings
SKU:LIN-398b9f
High-performance 10" ASME Class 600 Paddle Spacer for Line Blinds & Bleed Rings
Regular price
$299.99
Regular price
Sale price
$299.99
Unit price
per
Initiate Order
10" ASME Class 600 Paddle Spacer for Line Blinds & Bleed Rings
$299.99
Quantity: 1
Claim Your Seller Account
10" ASME Class 600 Paddle Spacer for Line Blinds & Bleed Rings
$299.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The 10-inch Paddle Spacer for ASME Class 600 line blinds and bleed rings is designed with precise dimensions and high-quality stainless steel material to withstand pressures up to 1440 psi at 100°F. It features a sturdy construction resembling a paddle with an open center for seamless integration in piping systems requiring temporary isolation. This spacer, meeting ASME and ISO 9001:2008 standards, ensures reliable performance and efficient operation for industrial applications.
Product Specifications
Additional Information Additional Information
One coat of standard shop primer will be applied to all carbon steel Line Blinds unless specified differently.Mill finish is standard. Other surface finishes are available. Contact factory for options. Standard materials are: SA516 Gr.70304 Stainless Steel316 Stainless Steel Other alloys can be furnished upon requestSure Flow Equipment Line Blinds are produced in strict accordance with the following codes of practice: ASME B16.48ASME B16.5ASME B16.20ASME B16.47 (For larger diameter flanges)

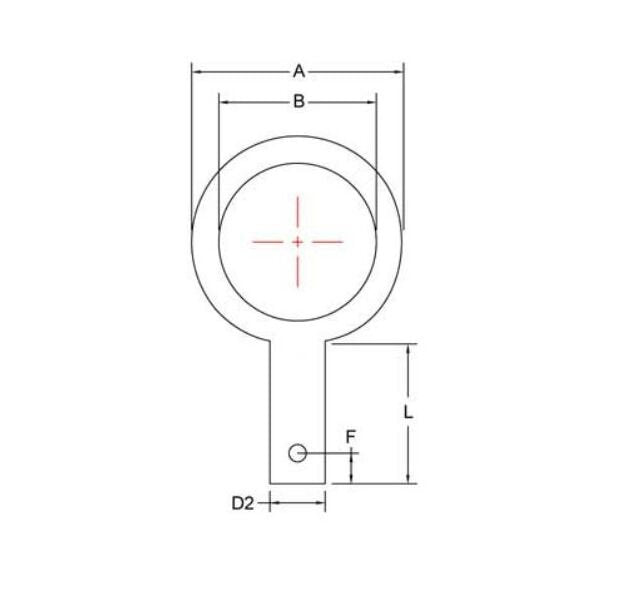

Dimensions Diameter E
1 3/8 in
Dimensions Dimension A
15 5/8 in
Dimensions Dimension B
10 7/16 in
Dimensions Dimension C
17 in
Dimensions Dimension D1
4 1/8 in
Dimensions Dimension D2
1 in
Dimensions Dimension F
1 in
Dimensions Dimension L
5 in
Dimensions Size
10 in
Dimensions Thickness
1 3/8 in
Industry Standardscertifications Industry Standardscertification
American Society of Mechanical Engineers (ASME) Class 600 | International Organization for Standardization (ISO) 9001:2008 (Intertek)
Note Note
Higher ASME pressure ratings availableLarger sizes availableManufacturer reserves the right to modify dimensions, materials, or design. Consult factory for certification.
Operating Pressures And Temperatures Pressure At 100 Degree Fahr
1440 psi
Operating Pressures And Temperatures Pressure At 489 Degree Fahr
600 psi
Specifications Material
Stainless Steel
Specifications Prefix Size
1000
