10 Inch Aluminum T-Handle Test Plug
10 Inch Aluminum T-Handle Test Plug
SKU:HIG-6a5ae0
High-quality, durable 10 Inch T-Handle Aluminum Test Plug for sewer air pressure tests. Chemical-resistant neoprene seal and heavy-duty aluminum body ensure long-term reliability.
Regular price
$34.99
Regular price
Sale price
$34.99
Unit price
per
Initiate Order
10 Inch Aluminum T-Handle Test Plug
$34.99
Quantity: 1
Claim Your Seller Account
10 Inch Aluminum T-Handle Test Plug
$34.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The 10 Inch Nominal Diameter T-Handle Aluminum Test Plug from the 143-7 Mechanical T-Handle Aluminum Test Plugs series is a robust solution designed for sewer air pressure tests. Featuring a heavy-duty aluminum body with a chemical-resistant neoprene seal, this plug ensures long-term durability and reliability. With a nominal diameter of 10 inches and maximum allowable back pressure of 5 psi for air pressure and 40 ft for liquid head pressure, this plug offers superior performance. Ideal for institutional and government buyers, this plug meets industry-specific certifications and standards for secure, efficient testing applications.

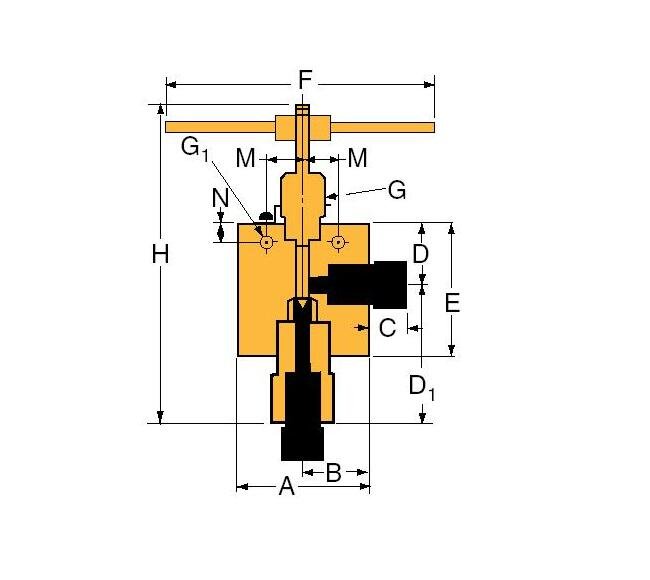

Product Specifications
Specifications A Width
4.88 in | 123.96 mm
Specifications Block Thickness
2.25 in | 57.15 mm
Specifications B Length
2.44 in | 61.96 mm
Specifications Connection Type
F1000C43
Specifications C Length
0.72 in | 18.28 mm
Specifications D1 Height
4.31 in | 109.47 mm
Specifications D Height
2.81 in | 71.37 mm
Specifications E Height
5.24 in | 133.35 mm
Specifications F Length
10.25 in | 260.35 mm
Specifications G1 Bracket Mounting Hole Size
0.56 in | 14.22 mm
Specifications G Packing Gland Mounting Hole Drill Size
1.62 in | 41.14 mm
Specifications H Height
10.56 in | 268.22 mm
Specifications M Length
1.25 in | 31.75 mm
Specifications N Height
1.12 in | 28.44 mm
Specifications Orifice Diameter
0.438 in | 11.12 mm
Specifications Outside Diameter Tube
1 in | 25.4 mm
Specifications Pressure Rating At Room Temperature
43000 psi | 2965 bar
Specifications Rated Cv
2.6
Specifications Stem Type
REG
Specifications Tubing Engagement Depth
1.62 in | 41.1 mm
Specifications Valve Pattern
2-Way Angle/Replaceable Seat
Valve Maintenance 0
Repair Kits:add "R" to the front of valve catalog number for proper repair kit. (Example: R30SC16071)Valve Bodies:Valve bodies are available. Order using the eight (8) digit part number found on the valve drawing or contact your Sales Representative for information.Consult your Autoclave representative for pricing on repair kits and valve bodies. Refer to the Tools, Installation, Operation and Maintenance section for proper maintenance procedures.
Valve Options 0
Extreme TemperaturesStandard Autoclave valves with Teflon packing may be operated from 0°F (-17.8°C) to 450°F (232°C). High temperature packing is available for service from -423°F (-252°C) to 1200°F (649°C) by adding the following suffixes to catalog order number.TG - standard valve with Teflon glass packing to 600°F (316°C).GY - standard valve with graphite braided yarn packing to 800°F (427°C).8,000 psi (569 bar) max.HT - extended stuffing box valve with graphite braided yarn packing to 1200°F (649°C).B - standard valve with cryogenic trim material and Teflon packing to -100°F (-73°C).LT - extended stuffing box valve with Teflon packing & Cryogenic trim materials to -423°F (-252°C).K - anti-vibration collet and gland assembly.
