10 Inch Fabricated Tee Type Strainer
10 Inch Fabricated Tee Type Strainer
SKU:TEM-f44ee2
Custom 10" Fabricated Tee Type Strainer for efficient pipeline contamination removal and equipment protection. ASME standards compliant.
Regular price
$349.99
Regular price
Sale price
$349.99
Unit price
per
Initiate Order
10 Inch Fabricated Tee Type Strainer
$349.99
Quantity: 1
Claim Your Seller Account
10 Inch Fabricated Tee Type Strainer
$349.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

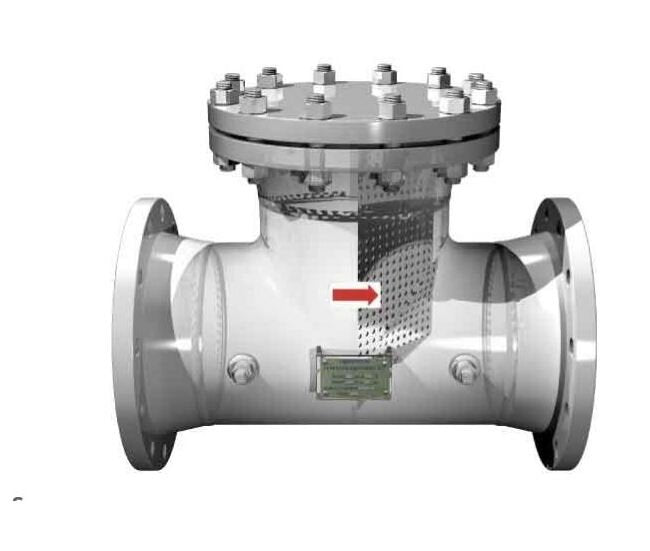

The 10 Inch Fabricated Tee Type Strainer by Sure Flow is a custom-designed solution for removing pipeline contaminants, safeguarding pumps, valves, and equipment. Constructed from carbon or stainless steel, this compact strainer is tailored to your specifications, offering optional materials, end connections, and accessories for enhanced flexibility and efficiency. With dimensions meeting ASME standards and industry certifications like ISO 9001:2008, this strainer ensures optimal performance and reliability in critical applications. Note: Consult the manufacturer for any modifications or certifications.
Product Specifications
Additional Information Additional Information
When ordering specify:Type - Straight Flow, Angled Flow, Angled ModifiedNominal Pipe SizeFlange Rating and FacingPressure Rating and FacingCorrosion Conditions, if any (type of materialPerforation (particle retention)

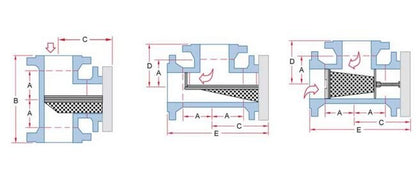

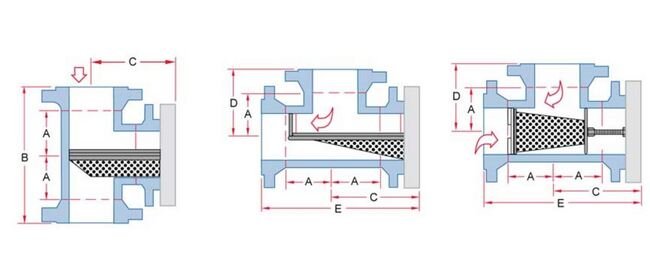

Dimensions Dimension A
8 1/2 in
Dimensions Dimension B For American Society Of Mechanical Engine
37 1/2 in
Dimensions Dimension C For American Society Of Mechanical Engine
23 3/8 in
Dimensions Dimension D For American Society Of Mechanical Engine
18 3/4 in
Dimensions Dimension E For American Society Of Mechanical Engine
42 1/8 in
Dimensions Pipe Size
10 in
Industry Standardscertifications Industry Standardscertification
International Organization for Standardization (ISO) 9001:2008 (Intertek)
Note Note
Flanges and bodies are designed to meet Section 1 of American Standard Code for Pressure Piping, ASA B31.1.Manufacturer reserves the right to modify dimensions, materials, or design. Consult factory for certification.
