10 Inch (in) Inlet (I) and 12 Inch (in) Outlet (O) Exhaust Head
10 Inch (in) Inlet (I) and 12 Inch (in) Outlet (O) Exhaust Head
SKU:EXH-76c184
N/A
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
10 Inch (in) Inlet (I) and 12 Inch (in) Outlet (O) Exhaust Head
$49.99
Quantity: 1
Claim Your Seller Account
10 Inch (in) Inlet (I) and 12 Inch (in) Outlet (O) Exhaust Head
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Clean and Quiet Release of Steam, Air, & other Gases Vented to Atmosphere.Entrained water, oil and dirt in exhaust steam, air or gas vented to atmosphere can cause damage, unsightly icing and dirt accumulation on roofs, buildings and surroundings. A Penn Cyclone Exhaust Head placed on the end of the vent line creates a cyclone spinning action that separates entrainment and directs it to a drain. The large diameter outlet and internal baffles help minimize exhaust noise while protecting the line from the entry of rain and snow.
Product Specifications

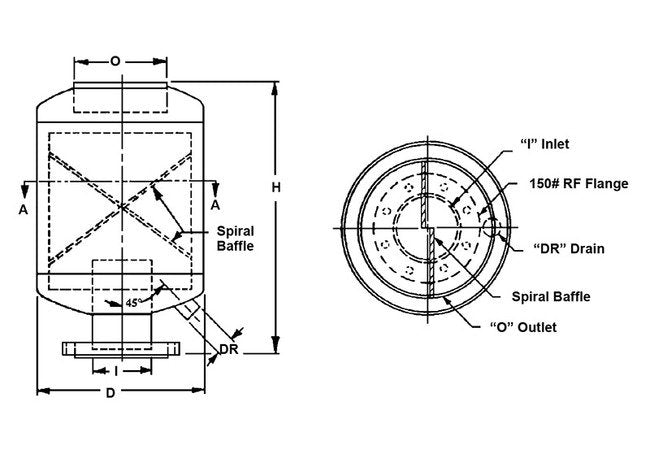

Dimensions Diameter D
20 in
Dimensions Drain Dr
2 in
Dimensions Height H
26 in
Dimensions Inlet I
10 in
Dimensions Outlet O
12 in
Features
Cyclonic Action - Spins out entrained water, oil and dirt.Reduce Noise - Large exhaust opening minimizes noise.Protects Lines - "Spiral Baffle" covers and protects vent line.
Note
To size an Exhaust Head use your vent line size to determine the inlet "I" size. Check the RATED CAPACITY to the actual maximum flow rate. Select a larger size for higher capacities as required.
Rated Capacity Air Flow
6,565 scfm
Rated Capacity Flange Weight
330 lb
Rated Capacity Steam
15,150 lb/hr
