10 Inch Stroke DC Linear Variable Differential Transformer Sensor
10 Inch Stroke DC Linear Variable Differential Transformer Sensor
SKU:DCT-cf6b76
High-precision 10
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
10 Inch Stroke DC Linear Variable Differential Transformer Sensor
$49.99
Quantity: 1
Claim Your Seller Account
10 Inch Stroke DC Linear Variable Differential Transformer Sensor
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

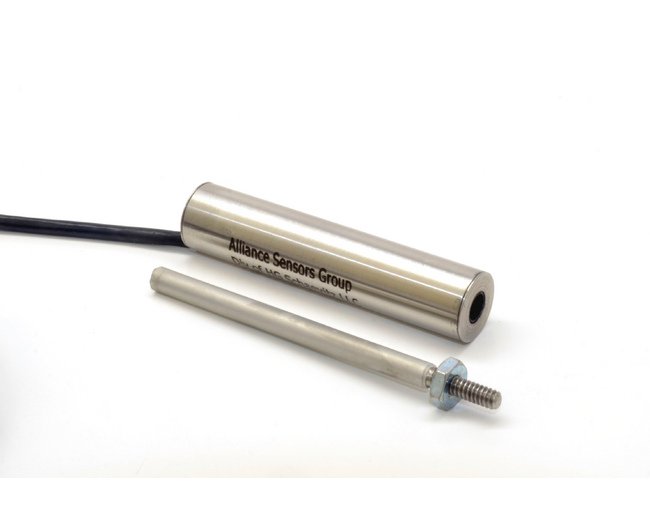

The 10 Inch Stroke DC Linear Variable Differential Transformer (LVDT) Sensor is a reliable and high-precision sensor designed to meet the demanding needs of both consumer and institutional buyers. Manufactured by Alliance Sensors Group, this sensor features a 1/2 inch outside diameter, 0 to 10 Volt output DC voltage, and a stainless steel body for durability. With a temperature range of -40 to 105 ºC, linearity of <0.25 % of full scale, and an update rate of 300 Hz, this sensor offers unmatched performance and accuracy. Ideal for applications requiring precise measurement and control, this sensor is European Conformity (CE) approved for quality assurance.
Product Specifications
Technical Specs Brands
Alliance Sensors Group
Technical Specs Cable Type
Axial
Technical Specs European Conformity Ce Approved
Yes
Technical Specs Linearity
<0.25 % of Full Scale
Technical Specs Material
Stainless Steel Body
Technical Specs Output Direct Current Dc Voltage
0 to 10 V
Technical Specs Outside Diameter
1/2 in
Technical Specs Range
10 in
Technical Specs Resolution
0.025 % of Full Scale
Technical Specs Stroke
10 in
Technical Specs Temperature Range
-40 to 105 ºC
Technical Specs Termination
1 m Cable
Technical Specs Update Rate
300 Hz
