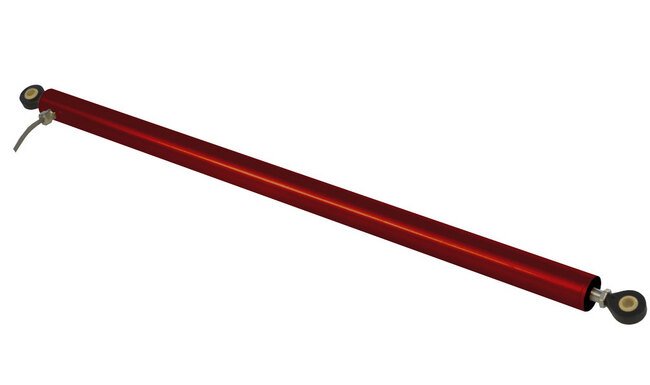

10-inch Stroke Linear Potentiometer Sensor
10-inch Stroke Linear Potentiometer Sensor
SKU:LIN-b84d5c
Enhance linear potentiometer systems with Alliance Sensors Group 10-inch Stroke Sensor for precise and reliable measurements.
Regular price
$89.99
Regular price
Sale price
$89.99
Unit price
per
Initiate Order
10-inch Stroke Linear Potentiometer Sensor
$89.99
Quantity: 1
Claim Your Seller Account
10-inch Stroke Linear Potentiometer Sensor
$89.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Upgrade your linear potentiometer system with the 27mm Outside Diameter sensor featuring a 10-inch Stroke and an Output Current range of 4 to 20mA. Manufactured by Alliance Sensors Group, this sensor ensures precise measurements with <0.25% Linearity. With CE approval, aluminum body, and radial cable termination, it meets stringent industry standards for reliability and performance in a temperature range of -20 to 85 °C.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Technical Specs Brands
Alliance Sensors Group
Technical Specs Cable Type
Radial
Technical Specs European Conformity Ce Approved
Yes
Technical Specs Linearity
<0.25 % of Full Scale
Technical Specs Material
Aluminum Body
Technical Specs Output Current
4 to 20 mA
Technical Specs Outside Diameter
27 mm
Technical Specs Range
10 in
Technical Specs Resolution
0.025 % of Full Scale
Technical Specs Stroke
10 in
Technical Specs Temperature Range
-20 to 85 ºC
Technical Specs Termination
1 m Cable
Technical Specs Type
Rod Ends
Technical Specs Update Rate
300 Hz
