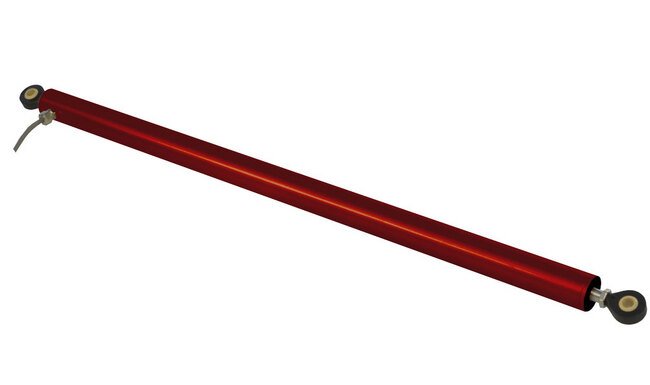

10-Inch Stroke Linear Potentiometer Sensor, 27mm OD, 0-10V DC Output
10-Inch Stroke Linear Potentiometer Sensor, 27mm OD, 0-10V DC Output
SKU:LIN-b06406
Upgrade with Alliance Sensors Group 10-Inch Stroke Linear Potentiometer Sensor for precise position feedback. Reliable 0-10V DC output, durable aluminum body, CE approved.
Regular price
$89.99
Regular price
Sale price
$89.99
Unit price
per
Initiate Order
10-Inch Stroke Linear Potentiometer Sensor, 27mm OD, 0-10V DC Output
$89.99
Quantity: 1
Claim Your Seller Account
10-Inch Stroke Linear Potentiometer Sensor, 27mm OD, 0-10V DC Output
$89.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Upgrade your equipment with the Alliance Sensors Group 10-Inch Stroke Linear Potentiometer Replacement Sensor. This sensor features a precise stroke length of 10 inches, a reliable 0-10V DC voltage output, and a wide operating temperature range of -40 to 105 ºC. With exceptional linearity (<0.25% of full scale) and high resolution (0.025% of full scale), this sensor ensures accurate position feedback. The aluminum body construction and CE approval guarantee durability and compliance with European standards. Enhance your systems with this advanced linear potentiometer sensor.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Technical Specs Brands
Alliance Sensors Group
Technical Specs Cable Type
Radial
Technical Specs European Conformity Ce Approved
Yes
Technical Specs Linearity
<0.25 % of Full Scale
Technical Specs Material
Aluminum Body
Technical Specs Output Direct Current Dc Voltage
0 to 10 V
Technical Specs Outside Diameter
27 mm
Technical Specs Range
10 in
Technical Specs Resolution
0.025 % of Full Scale
Technical Specs Stroke
10 in
Technical Specs Temperature Range
-40 to 105 ºC
Technical Specs Termination
1 m Cable
Technical Specs Type
Rod Ends
Technical Specs Update Rate
300 Hz
