10 Inch T-Handle Aluminum Test Plug with By-Pass
10 Inch T-Handle Aluminum Test Plug with By-Pass
SKU:HIG-556c03
Durable and reliable 10 Inch T-Handle Aluminum Test Plug with By-Pass for sewer pressure tests. Chemical-resistant neoprene seal ensures secure sealing.
Regular price
$89.99
Regular price
Sale price
$89.99
Unit price
per
Initiate Order
10 Inch T-Handle Aluminum Test Plug with By-Pass
$89.99
Quantity: 1
Claim Your Seller Account
10 Inch T-Handle Aluminum Test Plug with By-Pass
$89.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The 10 Inch T-Handle Aluminum Test Plug with By-Pass from the 143-7 Mechanical Plug series by Petersen® is designed for durability and reliability in long-term applications. With a heavy-duty aluminum body, chemical-resistant neoprene seal, and bypass for enhanced functionality, this plug is ideal for sewer air pressure tests. It's engineered to withstand air pressures up to 5 psi and liquid head pressures up to 40 ft, meeting stringent industry standards for safety and performance.

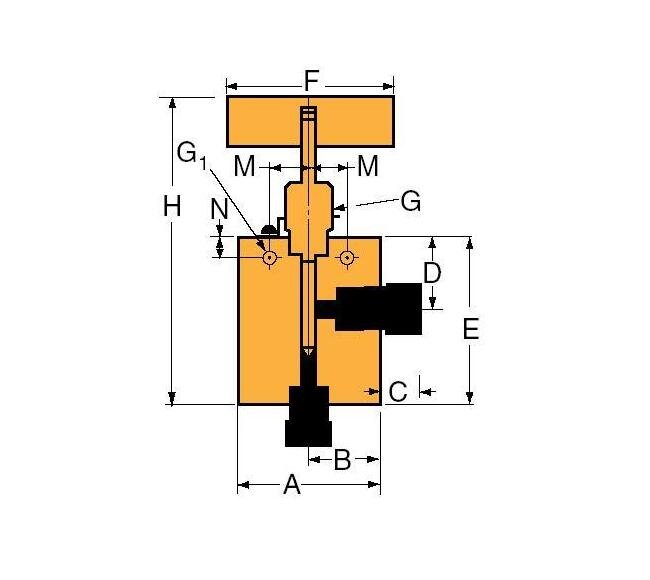

Product Specifications
Specifications A Width
2.62 in | 66.55 mm
Specifications Block Thickness
1.50 in | 38.10 mm
Specifications B Length
1.31 in | 33.27 mm
Specifications Connection Type
F562C
Specifications C Length
0.81 in | 20.57 mm
Specifications D Height
1.12 in | 28.45 mm
Specifications E Height
2.44 in | 61.98 mm
Specifications F Length
3.00 in | 76.20 mm
Specifications G1 Bracket Mounting Hole Size
0.28 in | 7.11 mm
Specifications G Packing Gland Mounting Hole Drill Size
1.00 in | 25.40 mm
Specifications H Height
5.06 in | 128.52 mm
Specifications M Length
0.69 in | 17.53 mm
Specifications N Height
0.38 in | 9.65 mm
Specifications Orifice Diameter
0.125 in | 3.18 mm
Specifications Outside Diameter Tube
9/16 in | 14.29 mm
Specifications Pressure Rating At Room Temperature
30000 psi | 2068 bar
Specifications Rated Cv
0.33
Specifications Stem Type
REG
Specifications Tubing Engagement Depth
0.87 in | 22.0 mm
Specifications Valve Pattern
2-Way Angle
Valve Maintenance 0
Repair Kits:add "R" to the front of valve catalog number for proper repair kit. (Example: R30VM4071)Valve Bodies:Valve bodies are available. Order using the eight (8) digit part number found on the valve drawing or contact your Sales Representative for information.Consult your Autoclave representative for pricing on repair kits and valve bodies. Refer to the Tools, Installation, Operation and Maintenance section for proper maintenance procedures.
Valve Options 0
Extreme TemperaturesStandard Autoclave valves with Teflon packing may be operated from 0°F (-17.8°C) to 450°F (232°C). High temperature packing is available for service from -423°F (-252°C) to 1200°F (649°C) by adding the following suffixes to catalog order number.TG - standard valve with Teflon glass packing to 600°F (316°C).GY - standard valve with graphite braided yarn packing to 800°F (427°C).HT - extended stuffing box valve with graphite braided yarn packing to 1200°F (649°C).B - standard valve with cryogenic trim material and Teflon packing to -100°F (-73°C).LT - extended stuffing box valve with Teflon packing & Cryogenic trim materials to -423°F (-252°C).
